Wacker Neuson

WP1550A

WP1550A

5100018323
£1,233.68 GBP
£1,233.68 GBP
Sale On request
Shipping calculated at checkout.

5100018323

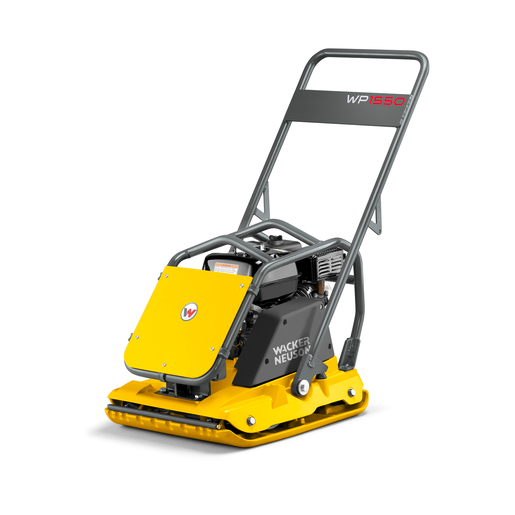

Compact single direction vibratory plate, compacts reliably on any compactor.
  • The control handle allows for effortless turning and manoeuvring
  • Sturdy design with minimum maintenance effort: The V-belt drive with all-round protection provides for a particularly long operating duration of the V-belt. The base plate is made from wear resistant nodular cast iron.
  • A sturdy tubular frame reliably protects the engine and water tank
  • Suspension points in the protective cage allow for safe transport. The guide handle that can be folded forward converts the unit into a compact unit in no time.

    •

  • Accessories, paving stone sliding mechanism, wheel set as well as water tank with sprinkler set available here in the shop
    • OPERATING FLUIDS Metric
    Tank capacity 3,6 l
    Exciter oil volume 0,15 l
    Exciter oil type 75W-90 API GL-4
    ENGINE Metric
    Inclined position max. 20,0 °
    Fuel management Carburettor
    Engine operating mode four-stroke
    Operating Engine speed 3.520 1/min
    Fuel consumption 0,80 L/hr
    Standard (Power max.) SAE J1349
    Standard (Effective power) ISO 3046 IFN
    Nominal Engine speed 3.600 1/min
    Tank capacity 3,60 l
    Electrode distance 0,7 - 0,8 mm
    Effective power 3,6 KW
    Oil filling max. 0,60 l
    Battery capacity (nom. value) 0 Ah
    Air cleaner dry air filter
    Power rating max. 3,6 KW
    Cooling air cooling
    Exhaust-gas limit EPA4/08
    Oil specification SAE 10W-30
    Starter battery Voltage 0 V
    Engine speed (Power max.) 3.600 1/min
    Starter type Recoil starter
    Oil filling min. 0,60 l
    Operating power 2,9 KW
    Engine type Gasoline engine
    Cylinder 1
    Engine Manufacturer Honda
    Standard (Operating power) ISO 3046 IFN
    Cylinder capacity 163 cm3
    Fuel Gasoline
    Spark plug(s) NGK BP-6 ES
    Oil volume incl. filter change 0,60 l
    MECHANICAL - OUTPUT DETAILS Metric
    Vibrations 5.880 1/min
    Gradeability 36,4 %
    Transmission FKK-KR
    Centrifugal force 15,000 kN
    Vibrations (Hz) 98 Hz
    Area capacity 870 m2/h
    Forward Running 29,00 m/min
    ELECTRICAL SYSTEM Metric
    Coding options -
    Electrode distance 0,7 - 0,8 mm
    Recommended Battery Typ -
    MECHANICAL DETAILS Metric
    Operating weight 89,0 kg
    Ground clearance 527 mm
    Height 963 mm
    Width 498 mm
    Length Drawbar in op. pos. 877 mm
    ENVIRONMENT DATA Metric
    Operating temperature range -15 - 40 °C
    Sound level LpA (Standard) EN 500-4
    Sound power LWA, guaranteed 108,0 dB(A)
    Storage temperature range -15 - 40 °C
    HAV summation (average value) 5,3 m/s2
    Uncertainty in measurement HAV 0,5 m/s2
    HAV summation (Standard) EN 500-4
    Sound level LpA 94,0 dB(A)
    Sound power LWA (Standard) EN 500-4, 2000/14/EG
    Sound power LWA, measured 107,0 dB(A)
    Custom Attributes Metric
    Model serie WP
