Wacker Neuson

VP1550AW

VP1550AW

5100029056
£1,014.96 GBP
£1,014.96 GBP
Sale On request
Shipping calculated at checkout.

5100029056

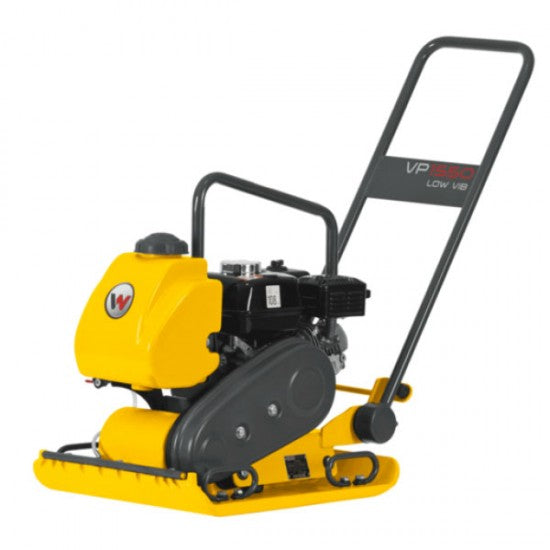

Compact single direction vibratory plate for occasional compaction work.
  • Sturdy design for minimum maintenance effort: The V-belt drive with all-round protection ensures a particularly long service life of the V-belt. The base plate is manufactured from wear-resistant nodular cast iron.
  • A large heavy-duty lifting eye allows for safe transport. The front-folding guide handle converts the unit into a compact unit in no time.
  • Optional paving stone sliding mechanism and wheel set available here in the shop
OPERATING FLUIDS Metric
Tank capacity 3,6 l
Exciter oil volume 0,25 l
Exciter oil type 75W-90 API GL-4
ENGINE Metric
Inclined position max. 20,0 °
Fuel management Carburettor
Engine operating mode four-stroke
Operating Engine speed 3.520 1/min
Fuel consumption 0,80 L/hr
Standard (Power max.) SAE J1349
Standard (Effective power) ISO 3046 IFN
Nominal Engine speed 3.600 1/min
Tank capacity 3,60 l
Electrode distance 0,7 - 0,8 mm
Effective power 3,6 KW
Oil filling max. 0,60 l
Battery capacity (nom. value) 0 Ah
Air cleaner dry air filter
Power rating max. 3,6 KW
Cooling air cooling
Exhaust-gas limit EPA4/08
Oil specification SAE 10W-30
Starter battery Voltage 0 V
Engine speed (Power max.) 3.600 1/min
Starter type Recoil starter
Oil filling min. 0,60 l
Operating power 2,9 KW
Engine type Gasoline engine
Cylinder 1
Engine Manufacturer Honda
Standard (Operating power) ISO 3046 IFN
Cylinder capacity 163 cm3
Fuel Gasoline
Spark plug(s) NGK BP-6 ES
Oil volume incl. filter change 0,60 l
MECHANICAL - OUTPUT DETAILS Metric
Vibrations 5.880 1/min
Gradeability 36,4 %
Transmission FKK-KR
Centrifugal force 15,000 kN
Vibrations (Hz) 98 Hz
Area capacity 750 m2/h
Forward Running 25,00 m/min
ENVIRONMENT DATA Metric
Operating temperature range -15 - 40 °C
Sound level LpA (Standard) EN 500-4
Sound power LWA, guaranteed 108,0 dB(A)
Storage temperature range -15 - 40 °C
HAV summation (average value) 6,6 m/s2
Uncertainty in measurement HAV 0,5 m/s2
HAV summation (Standard) EN 500-4
Sound level LpA 94,2 dB(A)
Sound power LWA (Standard) EN 500-4, 2000/14/EG
Sound power LWA, measured 107,0 dB(A)
MECHANICAL DETAILS Metric
Operating weight 93,0 kg
Ground clearance 642 mm
Height 896 mm
Width 386 mm
Length Drawbar in op. pos. 1.070 mm
Custom Attributes Metric
Model serie VPWackerWacker Neuson VOP
