Wacker Neuson

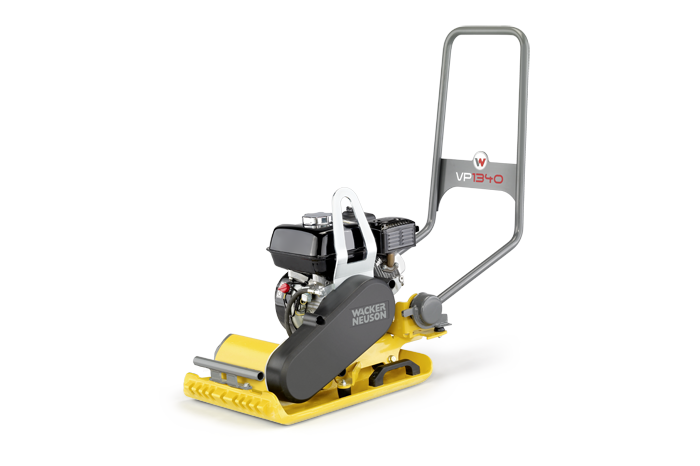

Wacker Neuson VP1340A

Wacker Neuson VP1340A

5100029061
£911.04 GBP
£911.04 GBP
Sale On request
Shipping calculated at checkout.

5100029061

Compact single direction vibratory plate, for occasional compaction work

  • Sturdy design for minimal maintenance effort: The V-belt drive with all-round protection provides for a particularly long operating duration of the V-belt. The base plate is made from wear resistant nodular cast iron.
  • A large sturdy lifting eye allows for secure transport. The guide handle that can be folded forward converts the unit into a compact unit in no time.
  • Accessories, paving stone sliding mechanism, wheel set as well as water tank with sprinkler set available here in the shop


OPERATING FLUIDS Metric
Exciter oil volume 0,25 l
Exciter oil type 75W-90 API GL-4
ENGINE Metric
Inclined position max. 20,0 °
Fuel management Carburettor
Engine operating mode four-stroke
Operating Engine speed 3.520 1/min
Fuel consumption 0,80 L/hr
Standard (Power max.) SAE J1349
Standard (Effective power) ISO 3046 IFN
Nominal Engine speed 3.600 1/min
Tank capacity 3,60 l
Electrode distance 0,7 - 0,8 mm
Effective power 3,6 KW
Oil filling max. 0,60 l
Battery capacity (nom. value) 0 Ah
Air cleaner dry air filter
Power rating max. 3,6 KW
Cooling air cooling
Exhaust-gas limit EPA4/08
Oil specification SAE 10W-30
Starter battery Voltage 0 V
Engine speed (Power max.) 3.600 1/min
Starter type Recoil starter
Oil filling min. 0,60 l
Operating power 2,9 KW
Engine type Gasoline engine
Cylinder 1
Engine Manufacturer Honda
Standard (Operating power) ISO 3046 IFN
Cylinder capacity 163 cm3
Fuel Gasoline
Spark plug(s) NGK BP-6 ES
Oil volume incl. filter change 0,60 l
MECHANICAL - OUTPUT DETAILS Metric
Vibrations 5.880 1/min
Gradeability 36,4 %
Transmission FKK-KR
Centrifugal force 13,000 kN
Vibrations (Hz) 98 Hz
Area capacity 600 m2/h
Forward Running 25,00 m/min
MECHANICAL DETAILS Metric
Operating weight 81,0 kg
Ground clearance 549 mm
Height 937 mm
Width 386 mm
Length Drawbar in op. pos. 1.040 mm
ENVIRONMENT DATA Metric
Operating temperature range -15 - 45 °C
Sound level LpA (Standard) EN 500-4
Sound power LWA, guaranteed 108,0 dB(A)
Storage temperature range -15 - 40 °C
HAV summation (average value) 3,1 m/s2
Uncertainty in measurement HAV 0,5 m/s2
HAV summation (Standard) EN 500-4
Sound level LpA 94,0 dB(A)
Sound power LWA (Standard) EN 500-4
Sound power LWA, measured 107,0 dB(A)
