Wacker Neuson

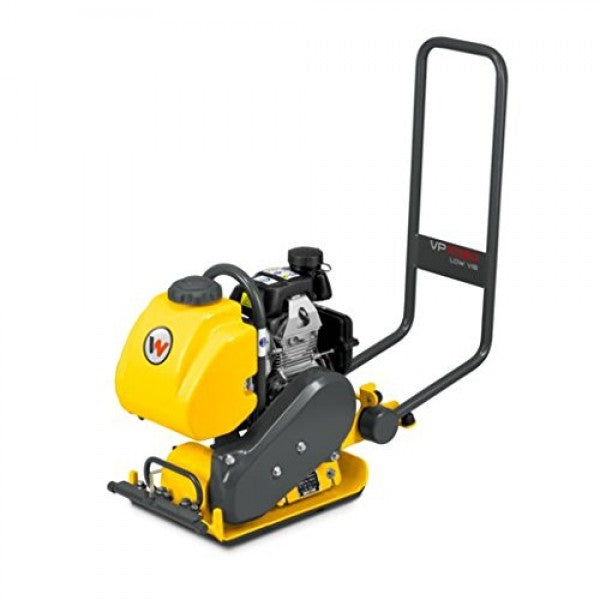

VP1030AW

VP1030AW

5000009514
Regular price £881.60 GBP
Regular price Sale price £881.60 GBP
Sale On request
Shipping calculated at checkout.

SKU:5000009514

Compact single direction vibratory plate, for occasional compaction work

  • Sturdy design for minimal maintenance effort: The V-belt drive with all-round protection provides for a particularly long operating duration of the V-belt. The base plate is made from wear resistant nodular cast iron.
  • A large sturdy lifting eye allows for secure transport. The guide handle that can be folded forward converts the unit into a compact unit in no time

Please contact us for prices on new equipment

Wacker Neuson VP1030A Compaction plate 300mm/12"

Description Metric
Length x width x height 855 x 300 x 900 mm
Lowest working height 500 mm
Size of base plate (L x W) 480 x 300 mm
Operating weight 50 kg
Shipping weight (including packaging) 55 kg
Shipping size 650 x 405 x 840 mm
Compacted area (soil) 396 m2/h
Forward speed (soil) 23 m/min
Max. gradeability (depending on soil) up to 30 %
Vibration frequency 97 Hz
Max. centrifugal force 10 kN
Engine Type Air-cooled, 4 stroke single cylinder, petrol engine
Type Honda
Displacement 97 cm3
Max. power output (DIN-ISO 3046*) 1.9 kW
at 4200 rpm
Rated power output 1.9 kW
at 3600 rpm
Fuel tank capacity 1.4 l
Fuel consumption 0.33 l/h
Power Train Power transmission from engine via centrifugal clutch and V-belt onto exciter whichtransmits centrifugal force onto baseplate.Wack
