Compact single direction vibratory plate, for occasional compaction work
- Sturdy design for minimal maintenance effort: The V-belt drive with all-round protection provides for a particularly long operating duration of the V-belt. The base plate is made from wear resistant nodular cast iron.
- A large sturdy lifting eye allows for secure transport. The guide handle that can be folded forward converts the unit into a compact unit in no time
Please contact us for prices on new equipment

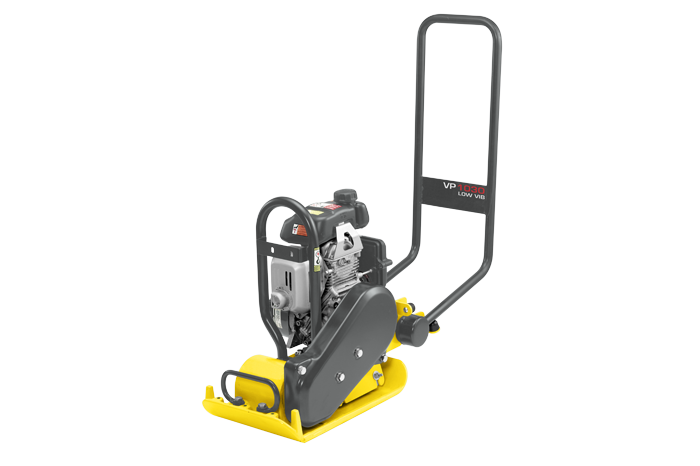

Wacker Neuson VP1030A Compaction plate 300mm/12"
|Length x width x height||855 x 300 x 900 mm|
|Lowest working height||500 mm|
|Size of base plate (L x W)||480 x 300 mm|
|Operating weight||50 kg|
|Shipping weight (including packaging)||55 kg|
|Shipping size||650 x 405 x 840 mm|
|Compacted area (soil)||396 m2/h|
|Forward speed (soil)||23 m/min|
|Max. gradeability (depending on soil)||up to 30 %|
|Vibration frequency||97 Hz|
|Max. centrifugal force||10 kN|
|Engine Type||Air-cooled, 4 stroke single cylinder, petrol engine|
|Max. power output (DIN-ISO 3046*)||1.9 kW|
|Rated power output||1.9 kW|
|Fuel tank capacity||1.4 l|
|Fuel consumption||0.33 l/h|
|Power Train||Power transmission from engine via centrifugal clutch and V-belt onto exciter whichtransmits centrifugal force onto baseplate.|
