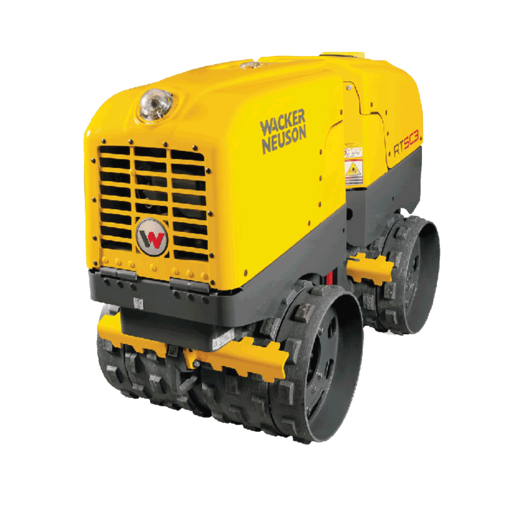

RTX-SC3
RTX-SC3
5100018518
Regular price
£22,495.00 GBP
Regular price
Sale price
£22,495.00 GBP
Unit price
/
per
SKU:5100018518
Share
- Articulated joint increases maneuverability
- Improved compacting action thanks to the exciter below the axle in each drum
- Low center of gravity improves stability
- High and low compaction force
- Flexible drums allow for easy adaptation of the drum width to the respective requirements on the construction site
- The base plate is maintenance-free
- Motor control module with diagnosis LEDs
- Infrared technology guarantees that the operator always has a clear line of sight
- Patented design with three receiving sensors prevents the signal from being lost and provides for an uninterrupted operation
- The device stops and interrupts the vibration as soon as the operator loses the clear line of sight or is closer than one meter to the receiving sensors of the roller
- The 16-channel transmission ensures that several rollers can be operated on the construction site fault-free
OPERATING FLUIDS | Metric |
Exciter oil type | Mobilith SHC 220 |
GENERATOR | Metric |
Nominal speed | 3.000 1/min |
Output voltage | 12 V |
Output current 1~ | 40,0 A |
ENGINE | Metric |
Power rating max. | 15,5 KW |
Engine operating mode | four-stroke |
Cooling | water-cooling |
Oil specification | SAE 15W-40 |
Alternator | 12V DC - 40A |
Operating Engine speed | 3.000 1/min |
Starter type | E-starter |
Engine type | Diesel engine |
Cylinder | 3 |
Engine Manufacturer | Kubota |
Standard (Operating power) | SAE J1995 |
Cylinder capacity | 898 cm3 |
Fuel | Diesel EN 590 |
ELECTRICAL SYSTEM | Metric |
Remote Control Bat. Capacity | 16 h |
Charging Time | 2,00 h |
Remote Control Range | 20 m |
MECHANICAL DETAILS | Metric |
Wheelbase | 1.000 mm |
Drum width | 560 mm |
Dry Weight | 1.430,0 kg |
Weight Drum (static) Front | 760 kg |
Side clearance left | 0 mm |
Side clearance right | 0 mm |
Thickness Drum Sheet | 10 mm |
Drum diameter (minor) | 520 mm |
Operating weight | 1.467,0 kg |
Length | 1.853 mm |
Weight Drum (static) Rear | 707 kg |
Height | 1.268 mm |
Turning radius inside | 1.600 mm |
Width | 820 mm |
CHASSIS | Metric |
Steering angle max. | 32 |
