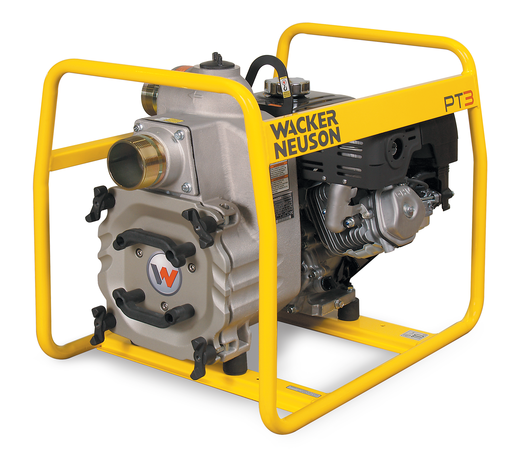

Petrol powered self-priming trash pump, Honda engine.
- Hardened ductile iron impeller and volute offer long life and easy maintenance
- High strength, lightweight aluminum housing
- Easy access and large fill and drain plugs
- Radial flow design produces high volume and head
OPERATING FLUIDS |
Metric |
Tank capacity |
5,3 l |
ENGINE |
Metric |
Power rating max. |
5,9 KW |
Engine operating mode |
four-stroke |
Engine speed 1 |
3.500 1/min |
Cooling |
air cooling |
Consumption at Speed 1 |
2,2 L/hr |
Operating Engine speed |
3.500 1/min |
Engine speed (Power max.) |
3.600 1/min |
Run Time at Speed 1 |
2,5 hrs |
Engine type |
Gasoline engine |
Cylinder |
1 |
Engine Manufacturer |
Honda |
Standard (Operating power) |
SAE J1349 |
Cylinder capacity |
270 cm3 |
Tank capacity |
5,30 l |
Fuel |
Gasoline |
MECHANICAL - OUTPUT DETAILS |
Metric |
Flow rate max. |
1.350 l/min |
Suction head max. |
7,6 m |
Solid diameter max. |
38,0 mm |
Delivery height max. |
29,0 m |
SHIPPING AND STORAGE |
Metric |
Shipping weight |
75,00 kg |
Width for shipping |
521 mm |
Length for shipping |
689 mm |
Height for shipping |
610 mm |
ENVIRONMENT DATA |
Metric |
Sound power LWA, guaranteed |
102,0 dB(A) |
MECHANICAL DETAILS |
Metric |
Operating weight |
68,0 kg |
Length |
673 mm |
Intake-/Pressure socket-dia. |
75 mm |
Height |
569 mm |
Width |
505 mm |
