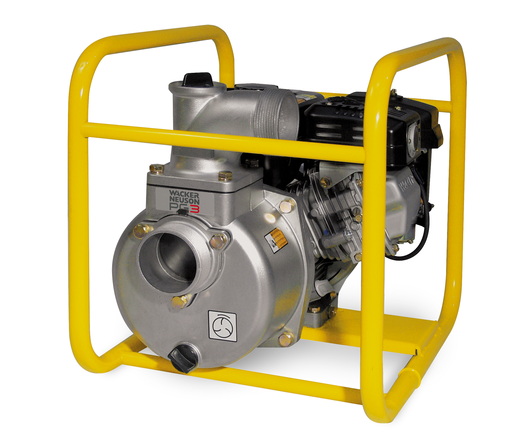

Petrol powered, self-priming dewatering pump for removing clear water and smaller amounts of water, Honda Engine.
- Cast iron impeller and volute for long life an minimal service
- Pump out vanes on back of impeller reduce debris
- Low oil shutdown increases operating life
- Lightweight cast aluminum housing
ENGINE |
Metric |
Power rating max. |
3,6 KW |
Cooling |
air cooling |
Operating Engine speed |
3.600 1/min |
Fuel consumption |
1,80 L/hr |
Engine speed (Power max.) |
3.600 1/min |
Engine type |
Gasoline engine |
Cylinder |
1 |
Engine Manufacturer |
Honda |
Running time at 100% |
2,1 hrs |
Cylinder capacity |
163 cm3 |
Tank capacity |
3,60 l |
Fuel |
Gasoline |
Oil filling max. |
0,60 l |
Fuel consumption at full power |
1,8 L/hr |
MECHANICAL - OUTPUT DETAILS |
Metric |
Flow rate max. |
1.000 l/min |
Suction head max. |
7,5 m |
Solid diameter max. |
6,5 mm |
Delivery height max. |
27,0 m |
MECHANICAL DETAILS |
Metric |
Operating weight |
29,0 kg |
Length |
515 mm |
Intake-/Pressure socket-dia. |
75 mm |
Height |
460 mm |
Width |
405 mm |
