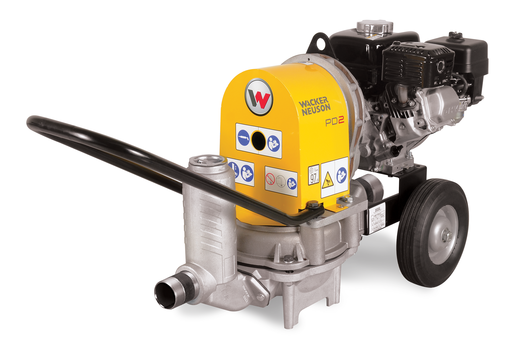

Petrol powered Diaphragm Pump for pumping water with some debris, including mud slurries and seepage areas, Honda engine.
- Direct water flow design minimizes downtime and permits unsurpervised operation
- Quality components promote long life
- Surge chamber at the inlet absorbs pressure surges for smooth operation
- Oil-bath lubrication constantly greases all parts of the transmission system reduces maintenance cost and downtime
| MECHANICAL - OUTPUT DETAILS | Metric |
| Flow rate max. | 189 l/min |
| Suction head max. | 7,5 m |
| Solid diameter max. | 38,0 mm |
| Delivery height max. | 15,0 m |
| MECHANICAL DETAILS | Metric |
| Operating weight | 59,0 kg |
| Length | 996 mm |
| Intake-/Pressure socket-dia. | 50 mm |
| Height | 585 mm |
| Width | 455 mm |
