IRFU58/120/10 (58mm/120v/10M)
IRFU58/120/10 (58mm/120v/10M)
Regular price
£1,456.28 GBP
Regular price
Sale price
£1,456.28 GBP
Unit price
/
per
SKU:
Share

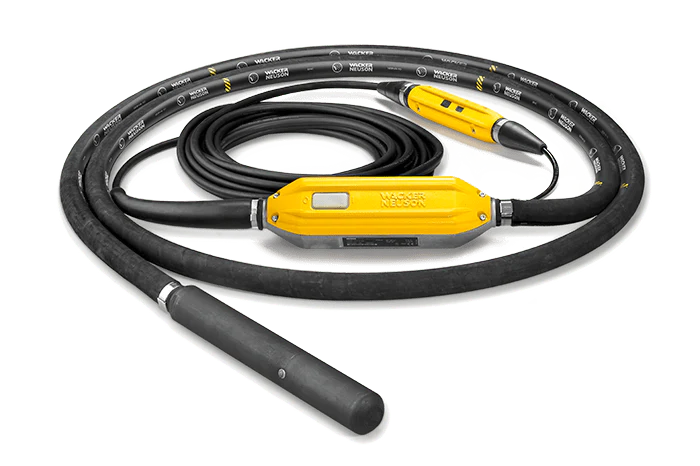

High frequency internal vibrator, designed for the toughest application conditions
- Integrated frequency inverter, therefore two pieces of equipment in one for convenient handling and compensation for fluctuating input voltages. No external inverter required.
- Power cable outfitted with Bodyguard™ (shutdown of the equipment in cases of emergency within 3 msec.) to protect the operator from electric shock if the electric power supply is insufficiently secured.
- Complete potted electronic components for a long service life
- Wear resistant vibrator head made of steel, completely induction hardened
- Repairable vibrator head (exchange of individual components)
- Ergonomically shaped switch box
- RPM-stable, powerful electric motor designed, developed and produced in-house - Made in Germany
- With integrated thermal overload protection breaker
- Power cable made of sturdy, flexible rubber
Technical Data
Description | Data | |
HAV | 4m/s2 | |
Vibrator Head Diameter | 58 mm | |
Vibrator Head Length | 400 mm | |
Vibrator Head Weight | 5.8 kg | |
Protection Hose Length | 10.0 m | |
Operating Weight | 19.8 kg | |
Packed Shipping Weight | 22 kg | |
Packed Shipping Dimensions (LxWxH) | 76 x 62 x 18 cm | |
Effective Compaction Diameter 1 | 85 cm | |
1 Please note: This is a non-binding statement based on the practical experiences of our customers under certain operating conditions. This may vary under special circumstances. We recommend always doing a test run under normal operating conditions. | ||
Vibration Frequency | 12000 rpm | |
Engine Type | High frequency squirrel-cage induction motor with electronic frequency inverter integrated into switch housing for direct mains supply using 110 - 130 V 50/60 Hz 1~ | |
Power Draw | 1.1 kW / 1.5 hp | |
Input Current | 12.0 A | |
Voltage | 110 - 130 V 1~ | |
Frequency | 50 / 60 Hz | |
Supply Cable Length | 15.0 m | |
Feed Cable Length | 0.5 m | |
Power Train | Directly from the built-in electric motor to the vibration system | |
Specifications may change due to continuous product development. * Actual power output may vary due to conditions of specific use |
