Wacker Neuson

IRFU38/120/5 (38mm/120v/5M)

IRFU38/120/5 (38mm/120v/5M)

5000610099
Regular price £1,302.36 GBP
Regular price Sale price £1,302.36 GBP
Sale On request
Shipping calculated at checkout.

SKU:5000610099

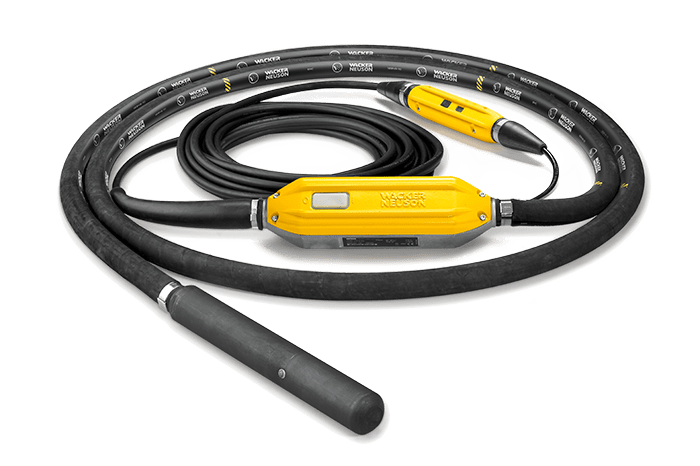

Electric internal vibrator with integrated frequency inverter for concrete compaction. Protection hose length of 5 meters. With integrated personal protection switch (Bodyguard™).

High frequency internal vibrator, designed for the toughest application conditions

  • Integrated frequency inverter, therefore two pieces of equipment in one for convenient handling and compensation for fluctuating input voltages. No external inverter required.
  • Power cable outfitted with Bodyguard™ (shutdown of the equipment in cases of emergency within 3 msec.) to protect the operator from electric shock if the electric power supply is insufficiently secured.
  • Complete potted electronic components for a long service life
  • Wear resistant vibrator head made of steel, completely induction hardened
  • Repairable vibrator head (exchange of individual components)
  • Ergonomically shaped switch box
  • RPM-stable, powerful electric motor designed, developed and produced in-house - Made in Germany
  • With integrated thermal overload protection breaker
  • Power cable made of sturdy, flexible rubber
OPERATING FLUIDS Metric
Oil volume 0,010 l
Oil specification Klüberoil 4UH1-46N
MOTOR Metric
Motor type asynchronous motor
MECHANICAL - OUTPUT DETAILS Metric
Vibrations 12.000 1/min
Vibrations (Hz) 200 Hz
Amplitude at air 1,90 mm
ELECTRICAL - OUTPUT DETAILS Metric
Nominal current 7,00 A
Phase 1 ~
Nominal voltage 110 - 130 V
Nominal frequency 50 - 60 Hz
Nominal power [P] 0,65 KW
ELECTRICAL SYSTEM Metric
Light cone 15,0 m
Kind of plug CEE-Plug 2P+E 16A 110V 4H
Integrated transformer yes
Length Cable 15,00 m
Breaker Switch On/Off yes
MECHANICAL DETAILS Metric
Rubber cap no
Head diameter/-diagonal 38 mm
Length Head 345 mm
External diameter hose 31 mm
Length Hose 5,00 m
Weight 13,60 kg
Head design round
ENVIRONMENT DATA Metric
Operating temperature range -10 - 40 °C
Sound level LpA (Standard) DIN EN ISO 11201
Protection class I / Protective earthing
Vibration total value ahv 2,5 m/s2
Storage temperature range -20 - 60 °C
Uncertainty in measurement HAV 0,5 m/s2
Sound level LpA 79,0 dB(A)
Vibration value ahv (Standard) DIN EN ISO 20643
Degree of protection IP67
Measuring method LpA LPA1m
Custom Attributes Metric
Model serie IRFU
Product line Premium
THERMAL - OUTPUT DETAILS Metric
Overheat limit activation 150 °C
