Wacker Neuson

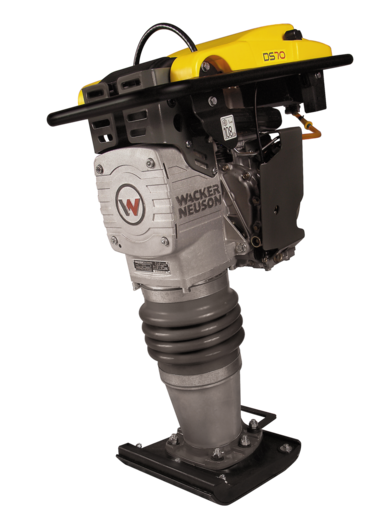

DS70 (330mm)

DS70 (330mm)

5100030612
£2,966.08 GBP
£2,966.08 GBP
Sale On request
Shipping calculated at checkout.

5100030612

Diesel rammer with 330 mm ramming shoe for soil compaction
  • Diesel engine is environmentally friendly and provides exceptional performance, fuel economy and long life
  • Large capacity fuel tank with self-cleaning in-tank fuel filter
  • Well-balanced lightweight machine for easy handling and operation
  • Single lever controls for start-up, speed and engine shut-off offer convenient operation.
  • Guide handle reduces hand-arm vibration (HAV) and thus improves user comfort
  • Ideally suited for the most demanding compaction of cohesive, mixed and granular soils in confined areas.
OPERATING FLUIDS Metric
Lubrication intervall 250 h
Oil volume 0,900 l
Oil specification SAE 10W-40
Tank capacity 4,20 l
ENGINE Metric
Air cleaner dry air filter
Fuel management Injection
Power rating max. 3,1 KW
Engine operating mode four-stroke
Cooling air cooling
Operating Engine speed 3.450 1/min
Fuel consumption 0,90 L/hr
Engine speed (Power max.) 3.450 1/min
Starter type Recoil starter
Operating power 3,1 KW
Engine type Diesel engine
Cylinder 1
Standard (Power max.) ISO 3046-1
Engine Manufacturer Yanmar
Standard (Operating power) SAE J1349
Standard (Effective power) ISO 3046-1
Cylinder capacity 211 cm3
Nominal Engine speed 3.450 1/min
Fuel Diesel EN 590
Effective power 3,1 KW
Oil filling max. 0,80 l
MECHANICAL - OUTPUT DETAILS Metric
Power of impact 21 kN
Forward Running 8,80 m/min
Number of blows 667 1/min
ELECTRICAL SYSTEM Metric
Display Equipment Operating hours counter
Operating elements Pushbutton OFF
MECHANICAL DETAILS Metric
Operating weight 83,0 kg
Length 740 mm
Length Ramming Shoe 340 mm
Height 1.000 mm
stroke at tamper 75 mm
Width Ramming Shoe 330 mm
Width 370 mm
Weight 83,00 kg
ENVIRONMENT DATA Metric
Operating temperature range -10 - 40 °C
Sound level LpA (Standard) EN 500-4
Sound power LWA, guaranteed 108,0 dB(A)
Storage temperature range -30 - 50 °C
HAV summation (average value) 11,9 m/s2
Uncertainty in measurement HAV 1,5 m/s2
HAV summation (Standard) EN ISO 5349-1
Sound level LpA 93,0 dB(A)
Sound power LWA (Standard) 2000/14/EG
Sound power LWA, measured 107,0 dB(A)
Custom Attributes Metric
Model serie DS
