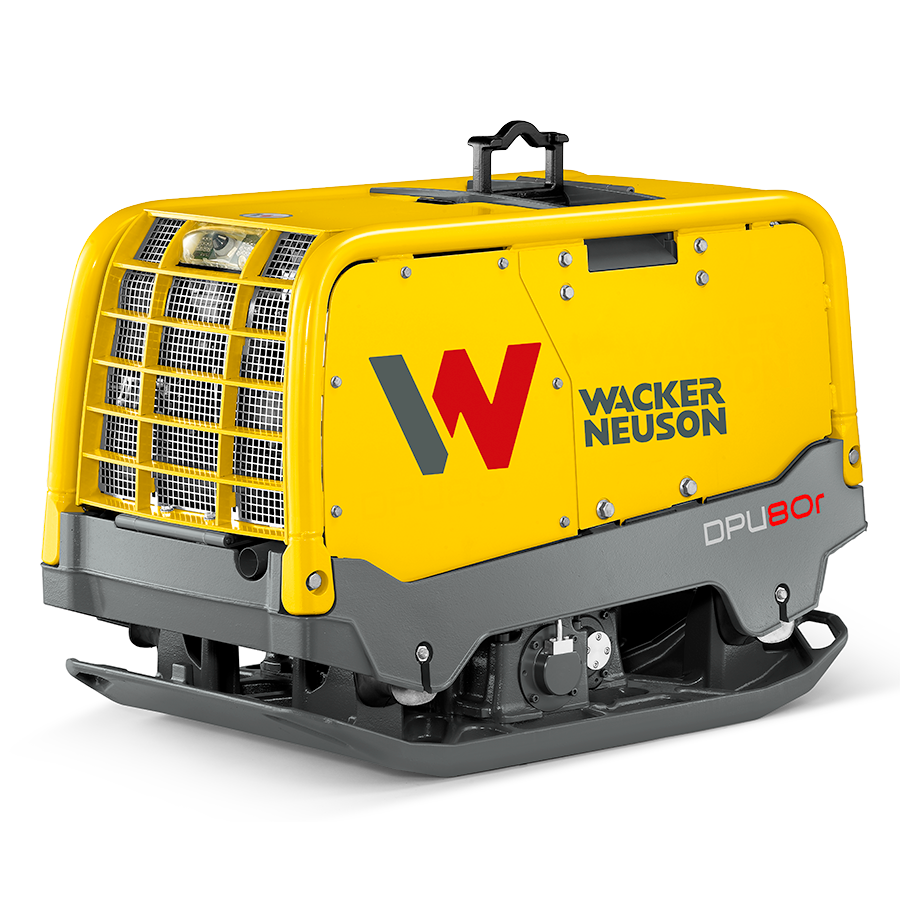

DPU80rLec770
DPU80rLec770
5100027034
Regular price
£13,802.00 GBP
Regular price
Sale price
£13,802.00 GBP
Unit price
/
per
SKU:5100027034
Share
Heavy remote-controlled vibratory plate with outstanding properties in terms of maneuverability, operating comfort, sturdiness and transport. Ideal for working in trench applications and sheeting and bracings.
View full details
- Vibratory plate with unique steering behavior: Very easy to steer due to the remote control with two joysticks. Travel speed and rotation possible simultaneously, allowing for accurate turning of curves and a fast working speed
- Large infrared receiver eye, well-protected from damage: Gives when impacted or folds in
- Time-tested and proven safety features of infrared receiver eye technology: Proximity (nearness) recognition sensor protects the operator, machine standstill if the clear line of sight is interrupted
- Remote control in the unit can be charged under lockable hood.
- Low overall height for compact working and transport dimensions
- Sturdy, two-piece steel frame hood, lockable
- Fold-down lifting eye, optimally shaped for using various tackle
- Start at the push of a button, automatic start after the warm-up phase prevents a cold start that stresses the machine
- Operator's panel, 12 languages available: Electronic operating displays, diagnostic menu, including for battery voltage, engine speed, coolant temperature, error memory
- Machine protection sensor protects the machine from overload when driving on hard sub-surface. Programmable behavior: Warning flashing, RPM reduction or shutdown of the machine.
- Programmable anti-theft PIN
- Hood can be opened without tools by swinging open, offers quick and spacious access to all control and maintenance parts
- Large air filter for long service life
- Large tank, fill level can be seen from outside
- Quiet liquid-cooled engine
- Four large tie-downs on the base plate, very easily accessible, even from outside of the loading area
OPERATING FLUIDS | Metric |
Cooling fluid type | SAE J1034:Wasser (1:1) |
Tank capacity | 7,2 l |
Hydraulic fluid type | Renolin MR 520 |
Exciter oil volume | 1,60 l |
Hydraulic fluid volume | 17,7 l |
Cooling fluid volume | 3,30 l |
Exciter oil type | 75W-90 API GL-4 |
ENGINE | Metric |
Inclined position max. | 25,0 ° |
Engine operating mode | four-stroke |
Operating Engine speed | 3.000 1/min |
Fuel consumption | 2,70 L/hr |
Standard (Power max.) | ISO 3046 IFN |
Standard (Effective power) | ISO 3046 IFN |
Nominal Engine speed | 3.000 1/min |
Tank capacity | 7,20 l |
Effective power | 11,0 KW |
Oil filling max. | 1,60 l |
Battery capacity (nom. value) | 50 Ah |
Air cleaner | dry air filter |
Power rating max. | 11,5 KW |
Cooling | water-cooling |
Exhaust-gas limit | EU Stage V |
Oil specification | SAE 10W-40 |
Starter battery Voltage | 12 V |
Engine speed (Power max.) | 3.600 1/min |
Starter type | E-starter |
Upper idling speed ex load | 3.100 1/min |
Oil filling min. | 1,60 l |
Operating power | 9,6 KW |
Engine type | Diesel engine |
Cylinder | 2 |
Engine Manufacturer | Kohler |
Standard (Operating power) | ISO 3046 IFN |
Cylinder capacity | 686 cm3 |
Fuel | Diesel EN 590 |
Oil volume incl. filter change | 1,60 l |
MECHANICAL - OUTPUT DETAILS | Metric |
Vibrations | 3.380 1/min |
Gradeability | 34,0 % |
Transmission | ELHY |
Centrifugal force | 80,000 kN |
Vibrations (Hz) | 56 Hz |
Area capacity | 1.247 m2/h |
Forward Running | 27,00 m/min |
HYDRAULIC | Metric |
Operating pressure hydraulics | 155,0 bar |
max. perm. hydraulic pressure | 230,0 bar |
ELECTRICAL SYSTEM | Metric |
Remote Control Bat. Capacity | 8 h |
Recommended Battery Typ | Ni-MH 7,2V/2000mAh |
Charging Time | 2,00 h |
Remote Control Range | 20 m |
ENVIRONMENT DATA | Metric |
Operating temperature range | -10 - 50 °C |
Sound level LpA (Standard) | EN 500-4 |
Sound power LWA, guaranteed | 109,0 dB(A) |
Storage temperature range | -20 - 50 °C |
Sound level LpA | 84,0 dB(A) |
Sound power LWA (Standard) | EN 500-4, 2000/14/EG |
Sound power LWA, measured | 108,0 dB(A) |
MECHANICAL DETAILS | Metric |
Operating weight | 724,0 kg |
Ground clearance | 830 mm |
Height | 833 mm |
Width | 770 mm |
Length Drawbar in op. pos. | 1.207 mmWacker Neuson |
