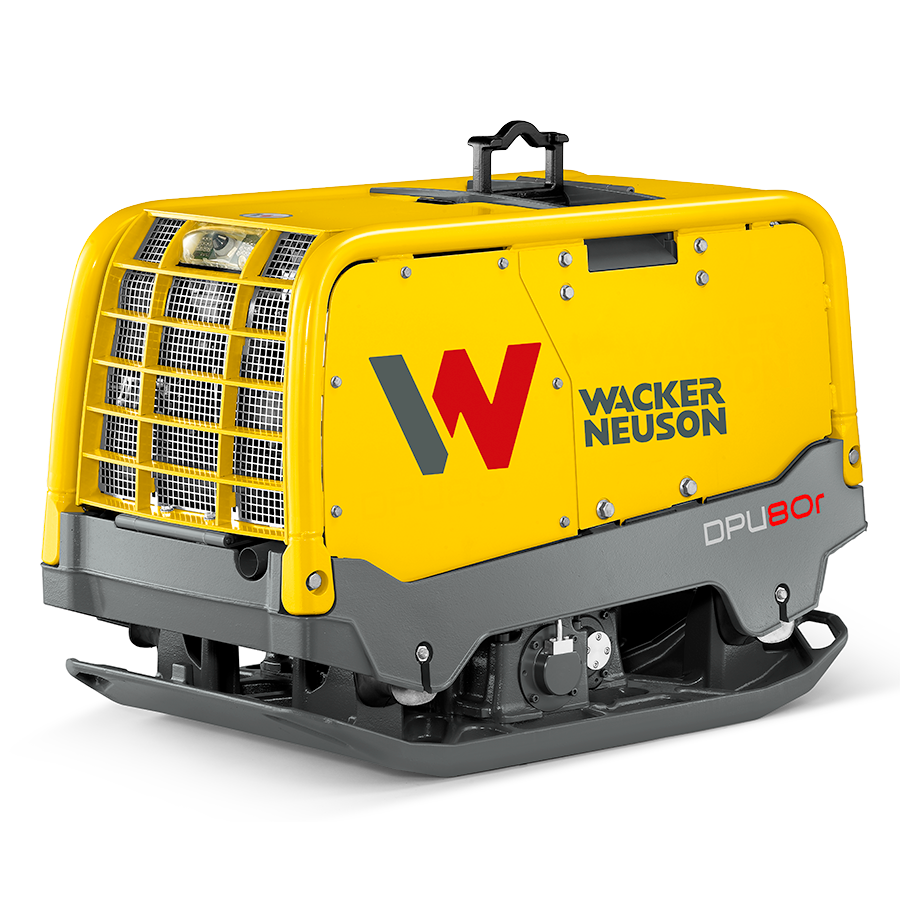

DPU80rLec670
DPU80rLec670
5100027033
Regular price
£13,802.00 GBP
Regular price
Sale price
£13,802.00 GBP
Unit price
/
per
SKU:5100027033
Share
Heavy vibratory plate with outstanding properties in terms of operating comfort, sturdiness and transport.
Intuitive control handle, direction change by moving the handle forward and backward
Center pole height is adjustable without tools
Low hand-arm vibrations, below 2.5 m/s², allows for 8 hours of application by the same operator
Low overall height for compact working and transport dimensions
Center pole quick lowering for passing below obstacles, direct reset to previous operator position
Sturdy, two-piece steel frame hood, lockable
Fold-down lifting eye, optimally shaped for using various tackle
Start at the push of a button, automatic start after the warm-up phase prevents a cold start that stresses the machine
Operator's panel, 12 languages available: Electronic operating displays, diagnostic menu, including for battery voltage, engine speed, coolant temperature, error memory
Machine protection sensor protects the machine from overload when driving on hard sub-surface. Programmable behavior: Warning flashing, RPM reduction or shutdown of the machine.
Programmable anti-theft PIN
Hood can be opened without tools by swinging open, offers quick and spacious access to all control and maintenance parts
Large air filter for long service life
Large tank, fill level can be seen from outside
Quiet liquid-cooled engine
Self-latching, sturdy and play-free center pole lock, release via foot actuation
Four large tie-downs on the base plate, very easily accessible, even from outside of the loading area
View full details
Optionally also available with Compatec (compaction control).
OPERATING FLUIDS | Metric |
Cooling fluid type | SAE J1034:Wasser (1:1) |
Hydraulic fluid type | Renolin MR 520 |
Exciter oil volume | 1,60 l |
Hydraulic fluid volume | 17,7 l |
Cooling fluid volume | 3,30 l |
Exciter oil type | 75W-90 API GL-4 |
ENGINE | Metric |
Inclined position max. | 25,0 ° |
Engine operating mode | four-stroke |
Operating Engine speed | 3.000 1/min |
Fuel consumption | 2,70 L/hr |
Standard (Power max.) | ISO 3046 IFN |
Standard (Effective power) | ISO 3046 IFN |
Nominal Engine speed | 3.000 1/min |
Tank capacity | 7,20 l |
Effective power | 11,0 KW |
Oil filling max. | 1,60 l |
Battery capacity (nom. value) | 50 Ah |
Air cleaner | dry air filter |
Power rating max. | 11,5 KW |
Cooling | water-cooling |
Exhaust-gas limit | EU Stage V |
Oil specification | SAE 10W-40 |
Starter battery Voltage | 12 V |
Engine speed (Power max.) | 3.600 1/min |
Starter type | E-starter |
Upper idling speed ex load | 3.100 1/min |
Oil filling min. | 1,60 l |
Operating power | 9,6 KW |
Engine type | Diesel engine |
Cylinder | 2 |
Engine Manufacturer | Kohler |
Standard (Operating power) | ISO 3046 IFN |
Cylinder capacity | 686 cm3 |
Fuel | Diesel EN 590 |
Oil volume incl. filter change | 1,60 l |
MECHANICAL - OUTPUT DETAILS | Metric |
Vibrations | 3.380 1/min |
Gradeability | 34,0 % |
Transmission | ELHY |
Centrifugal force | 80,000 kN |
Vibrations (Hz) | 56 Hz |
Area capacity | 1.085 m2/h |
Forward Running | 27,00 m/min |
HYDRAULIC | Metric |
Operating pressure hydraulics | 155,0 bar |
max. perm. hydraulic pressure | 230,0 bar |
ELECTRICAL SYSTEM | Metric |
Remote Control Bat. Capacity | 8 h |
Recommended Battery Typ | Ni-MH 7,2V/2000mAh |
Charging Time | 2,00 h |
Remote Control Range | 20 m |
ENVIRONMENT DATA | Metric |
Operating temperature range | -10 - 50 °C |
Sound level LpA (Standard) | EN 500-4 |
Sound power LWA, guaranteed | 109,0 dB(A) |
Storage temperature range | -20 - 50 °C |
Sound level LpA | 84,0 dB(A) |
Sound power LWA (Standard) | EN 500-4, 2000/14/EG |
Sound power LWA, measured | 108,0 dB(A) |
MECHANICAL DETAILS | Metric |
Operating weight | 709,0 kg |
Ground clearance | 830 mm |
Height | 833 mm |
Width | 670 mm |
Length Drawbar in op. pos. | 1.207 mm |
