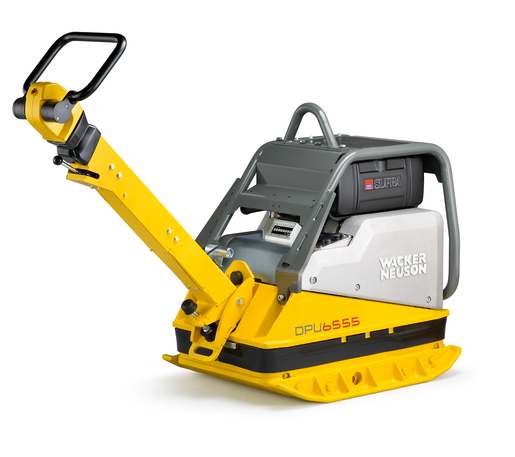

DPU6555Hech Compatec
DPU6555Hech Compatec
5100009639
Regular price
£9,238.32 GBP
Regular price
Sale price
£9,238.32 GBP
Unit price
/
per
SKU:5100009639
Share
Powerful vibratory plate that also easily compacts heavy soils.
View full details
- Compatec: Easy to understand display for compaction control with 8 LEDs
- Intuitive control handle: Control of the direction of movement as well as the speed in the same movement sequence - without changing grip, both hands stay on the control handle
- Low hand-arm-vibrations (well below 2.5 m/s²)
- Height adjustable center pole
- Electric starter with a loud signal tone generator to avoid unnecessary battery discharge
- Safety setting: Machine moves away from the operator if the control handle is released
- Large-sized engine with high power reserves for a long service life
- Motor protection: Not possible to start with a low oil level
- Operating hour meter
- Thick, wear resistant base plate made from nodular cast iron
- The engine and tank are protected by a sturdy frame, which is also useful for a sturdy tie-down during transport.
- Very sturdy, free from play center pole lock, easy to actuate for a secure transport
- Large lifting eye that can be offset to neutral height
- All maintenance accesses are quick and easy to reach
- Self-adjusting V-belt and maintenance-free alternator
- Comprehensive protection of the functional parts against stone chipping and dirt accumulation
- Due to the low frequency, also suitable for the vibration of heavy interlocking paving stones
- Quick and easy assembly of a paving pad possible
OPERATING FLUIDS | Metric |
Tank capacity | 6,0 l |
Hydraulic fluid type | Renolin MR 520 |
Exciter oil volume | 0,75 l |
Hydraulic fluid volume | 0,5 l |
Exciter oil type | 75W-90 API GL-4 |
ENGINE | Metric |
Inclined position max. | 25,0 ° |
Engine operating mode | four-stroke |
Operating Engine speed | 3.010 1/min |
Fuel consumption | 1,90 L/hr |
Standard (Power max.) | ISO 3046 IFN |
Standard (Effective power) | ISO 3046 IFN |
Nominal Engine speed | 2.800 1/min |
Tank capacity | 6,00 l |
Effective power | 9,6 KW |
Oil filling max. | 1,90 l |
Battery capacity (nom. value) | 45 Ah |
Air cleaner | dry air filter |
Power rating max. | 10,1 KW |
Cooling | air cooling |
Exhaust-gas limit | EU Stage V |
Oil specification | SAE 10W-40 |
Starter battery Voltage | 12 V |
Engine speed (Power max.) | 3.600 1/min |
Starter type | E-starter |
Upper idling speed ex load | 3.080 1/min |
Oil filling min. | 1,00 l |
Operating power | 6,8 KW |
Engine type | Diesel engine |
Cylinder | 1 |
Engine Manufacturer | Hatz |
Standard (Operating power) | ISO 3046 IFN |
Cylinder capacity | 667 cm3 |
Fuel | Diesel EN 590 |
Oil volume incl. filter change | 0,00 l |
MECHANICAL - OUTPUT DETAILS | Metric |
Vibrations | 4.150 1/min |
Gradeability | 46,6 % |
Transmission | FKR |
Centrifugal force | 65,000 kN |
Vibrations (Hz) | 69 Hz |
Area capacity | 1.200 m2/h |
Forward Running | 28,00 m/min |
MECHANICAL DETAILS | Metric |
Operating weight | 490,0 kg |
Ground clearance | 861 - 1.005 mm |
Height | 1.308 mm |
Width | 710 mm |
Length Drawbar in op. pos. | 1.664 mm |
ENVIRONMENT DATA | Metric |
Operating temperature range | -15 - 40 °C |
Sound level LpA (Standard) | EN 500-4 |
Sound power LWA, guaranteed | 109,0 dB(A) |
Storage temperature range | -15 - 40 °C |
HAV summation (average value) | 2,5 m/s2 |
Uncertainty in measurement HAV | 0,5 m/s2 |
HAV summation (Standard) | EN 500-4 |
Sound level LpA | 97,0 dB(A) |
Sound power LWA (Standard) | EN 500-4 |
Sound power LWA, measured | 108,0 dB(A) |
Custom Attributes | Metric |
Model serie | DPU |
