Wacker Neuson

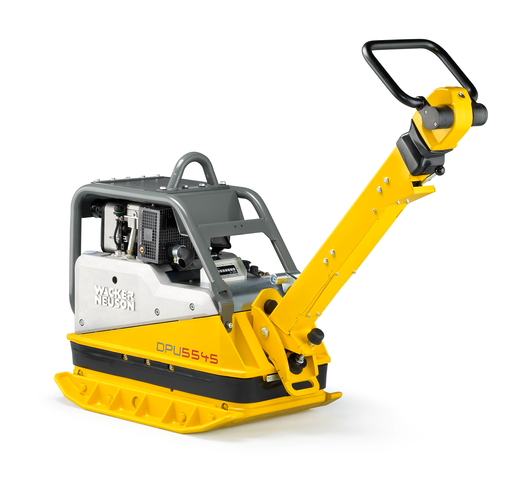

DPU5545Hech Compatec

DPU5545Hech Compatec

5100009655
Regular price £8,782.12 GBP
Regular price Sale price £8,782.12 GBP
Sale On request
Shipping calculated at checkout.

SKU:5100009655

Powerful vibratory plate that also easily compacts heavy soils.
  • Compatec: Easy to understand display for compaction control with 8 LEDs
  • Intuitive control handle: Control of the direction of movement as well as the speed in the same movement sequence - without changing grip, both hands stay on the control handle
  • Low hand-arm-vibrations (well below 2.5 m/s²)
  • Height adjustable center pole
  • Electric starter with a loud signal tone generator to avoid unnecessary battery discharge
  • Safety setting: Machine moves away from the operator if the control handle is released
  • Large-sized engine with high power reserves for a long service life
  • Motor protection: Not possible to start with a low oil level
  • Operating hour meter
  • Thick, wear resistant base plate made from nodular cast iron
  • The engine and tank are protected by a sturdy frame, which is also useful for a sturdy tie-down during transport.
  • Very sturdy, free from play center pole lock, easy to actuate for a secure transport
  • Large lifting eye that can be offset to neutral height
  • All maintenance accesses are quick and easy to reach
  • Self-adjusting V-belt and maintenance-free alternator
  • Comprehensive protection of the functional parts against stone chipping and dirt accumulation
  • Due to the low frequency, also suitable for the vibration of heavy interlocking paving stones
  • Quick and easy assembly of a paving pad possible
You will also find an appropriate paving pad here in the shop for the protection of paving stone bottoms.
OPERATING FLUIDS Metric
Tank capacity 5,00 l
Hydraulic fluid type Renolin MR 520
Exciter oil volume 0,75 l
Hydraulic fluid volume 0,5 l
Exciter oil type 75W-90 API GL-4
ENGINE Metric
Inclined position max. 30,0 °
Engine operating mode four-stroke
Operating Engine speed 3.000 1/min
Fuel consumption 1,60 L/hr
Standard (Power max.) ISO 3046 IFN
Standard (Effective power) ISO 3046 IFN
Nominal Engine speed 2.850 1/min
Tank capacity 5,0 l
Effective power 6,4 KW
Oil filling max. 1,10 l
Battery capacity (nom. value) 45 Ah
Air cleaner dry air filter
Power rating max. 7,0 KW
Cooling air cooling
Exhaust-gas limit EU Stage V
Oil specification SAE 10W-40
Starter battery Voltage 12 V
Engine speed (Power max.) 3.600 1/min
Starter type E-starter
Upper idling speed ex load 3.060 1/min
Oil filling min. 0,80 l
Operating power 4,9 KW
Engine type Diesel engine
Cylinder 1
Engine Manufacturer Hatz
Standard (Operating power) ISO 3046 IFN
Cylinder capacity 445 cm3
Fuel Diesel EN 590
Oil volume incl. filter change 1,20 l
MECHANICAL - OUTPUT DETAILS Metric
Vibrations 4.150 1/min
Gradeability 57,7 %
Transmission FKR
Centrifugal force 55,000 kN
Vibrations (Hz) 69 Hz
Area capacity 980 m2/h
Forward Running 27,00 m/min
ENVIRONMENT DATA Metric
Operating temperature range -15 - 40 °C
Sound level LpA (Standard) EN 500-4
Sound power LWA, guaranteed 108,0 dB(A)
Storage temperature range -15 - 40 °C
HAV summation (average value) 2,5 m/s2
Uncertainty in measurement HAV 0,5 m/s2
HAV summation (Standard) EN 500-4
Sound level LpA 94,0 dB(A)
Sound power LWA (Standard) EN 500-4
Sound power LWA, measured 107,0 dB(A)
MECHANICAL DETAILS Metric
Operating weight 425,0 kg
Ground clearance 790 - 914 mm
Height 1.308 mm
Width 604 mm
Length Drawbar in op. pos. 1.661 mm
Custom Attributes Metric
Model serie DPU
