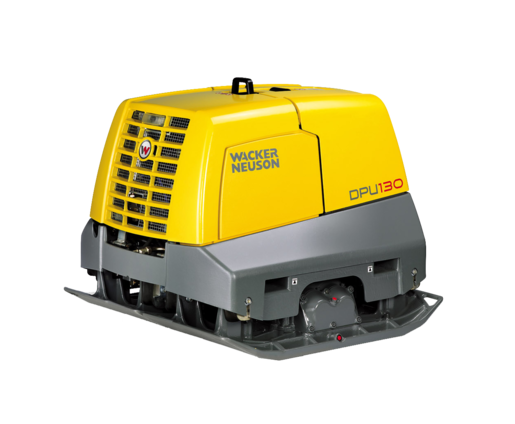

Wacker Neuson

DPU130

DPU130

5000610143
£18,902.00 GBP
£18,902.00 GBP
Sale On request
Shipping calculated at checkout.

5000610143

The economic alternative to the 7-ton roller!



Vibratory plate
  • Electric starter, can be protected by PIN
  • Two-part base plate for easy maneuvering
  • Forward and reverse operation in variable, infinitely adjustable speed
  • On the spot compaction
  • Creep speed for maneuvering on hard sub-surfaces
  • Large rotating beacon display for overload
  • Emergency shut-down switch
  • Hydraulically activated control
  • Diesel engine with water cooling
  • All system components, including on/off switch, display, lifting eye and tank, are placed below the lockable hood in a protected manner
  • Two-part hood that opens wide for ideal access to the engine and all maintenance parts
  • On-board computer with display for comprehensive diagnoses and displays of engine and operating states
  • Control lamps for oil pressure, engine temperature and air cleaner capacity
  • Favorably priced transport is possible, e.g. on the loading area of a small truck
Remote control
  • Safety features: The machine stops when near the operator (2 meters), when at too great a distance (20 meters) and upon loss of a clear line of sight (obstruction between operator and machine).
  • Infrared technology
  • 16 different channels
  • Rechargeable on vibratory plate (under lockable hood) or external power source

OPERATING FLUIDS

 Metric
Cooling fluid type Maintain Fricofin
Hydraulic fluid type MR 520
Exciter oil volume 1,20 l
Hydraulic fluid volume 44,0 l
Cooling fluid volume 2,00 l
Exciter oil type 75W-90 API GL-4
ENGINE Metric
Inclined position max. 25,0 °
Engine operating mode four-stroke
Operating Engine speed 2.700 1/min
Fuel consumption 5,30 L/hr
Standard (Power max.) ISO 3046 IFN
Standard (Effective power) ISO 3046 IFN
Nominal Engine speed 2.700 1/min
Tank capacity 18,00 l
Effective power 21,0 KW
Oil filling max. 3,00 l
Battery capacity (nom. value) 50 Ah
Air cleaner dry air filter
Power rating max. 24,5 KW
Cooling water-cooling
Exhaust-gas limit EU Stage V
Oil specification SAE 10W-40
Starter battery Voltage 12 V
Engine speed (Power max.) 3.600 1/min
Starter type E-starter
Upper idling speed ex load 2.800 1/min
Oil filling min. 3,00 l
Operating power 16,0 KW
Engine type Diesel engine
Cylinder 4
Engine Manufacturer Kohler
Standard (Operating power) ISO 3046 IFN
Cylinder capacity 1.372 cm3
Fuel Diesel EN 590
Oil volume incl. filter change 3,20 l
MECHANICAL - OUTPUT DETAILS Metric
Vibrations 3.480 1/min
Gradeability 46,0 %
Transmission ELHY
Centrifugal force 130,000 kN
Vibrations (Hz) 58 Hz
Area capacity 2.232 m2/h
Forward Running 31,00 m/min
HYDRAULIC Metric
Operating pressure hydraulics 140,0 bar
max. perm. hydraulic pressure 175,0 bar
ELECTRICAL SYSTEM Metric
Remote Control Bat. Capacity 12 h
Coding options 16 Kanäle
Recommended Battery Typ Ni-MH 7,2V/2000mAh
Charging Time 1,90 h
Remote Control Range 23 m
MECHANICAL DETAILS Metric
Operating weight 1.170,0 kg
Ground clearance 996 mm
Height 996 mm
Width 1.202 mm
Length Drawbar in op. pos. 1.270 mm
ENVIRONMENT DATA Metric
Operating temperature range -10 - 50 °C
Sound level LpA (Standard) EN 500-4
Sound power LWA, guaranteed 109,0 dB(A)
Storage temperature range -20 - 50 °C
Sound level LpA 87,0 dB(A)
Sound power LWA (Standard) EN 500-4
Sound power LWA, measured 108,0 dB(A)
Custom Attributes Metric
Model serie DPUWacker
