Wacker Neuson

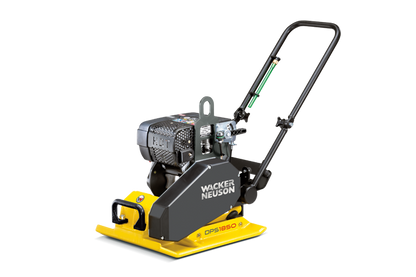

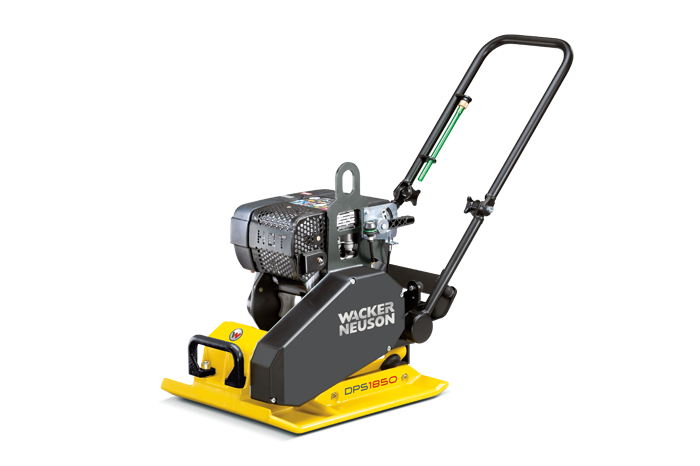

DPS1850H

DPS1850H

5000610032
Regular price £0.00 GBP
Regular price Sale price £0.00 GBP
Sale On request
Shipping calculated at checkout.

SKU:5000610032

Small, agile all-rounder with excellent maneuverability
  • Compact design
  • Ergonomically placed throttle lever
  • Vibration-damped, height adjustable control handle
  • Wear-resistant base plate made from nodular cast iron
  • Air cleaner capacity display visible from the outside
  • Maintenance-free exciter
  • All maintenance accesses are quick and easy to reach
  • Quick and easy assembly of a paving pad possible
Can also be optimized for asphalt compaction with accessories. You will also find water tanks, protective frames, asphalt control handles as well as paving pads for paving stone compaction here in the shop.

Technical Data

Description Data
Operating Weight 110 kg
Baseplate W x L 500 x 600 mm
Working Width 500 mm
Machine Height 620 mm
Working Height of Handle (adjustable) 838 - 1093 mm
Base Plate Thickness 8 mm
Max. Centrifugal Force 18 kN / 4.05 lbf
Vibration Frequency 90 Hz / 90 vpm
Forward Speed 22 m/min
Max. Gradeability (depending on soil) 30%
Compacted Area (depending on soil) 660 m2/h
Drive Engine Hatz 1B20
Engine Type Air Cooled Single Cylinder 4 Stroke Diesel
Max. Power Output (DIN-ISO 3046*) 3.4kW / 4.6hp @ 3600 rpm
Displacement 232 cm3
Rated Power Output 1.4kW / 1.9hp @ 3520 rpm
Fuel Consumption 1.0 litres/h
Fuel Tank Capacity 3 litres
Max allowable tilt of engine in continuous operation 30°
Power Train from drive engine via centrifugal clutch and V-belt directly to the Exciter
