Wacker Neuson

BS60-4As (280mm)

BS60-4As (280mm)

5100030606
£1,926.00 GBP
£1,926.00 GBP
Sale On request
Shipping calculated at checkout.

5100030606

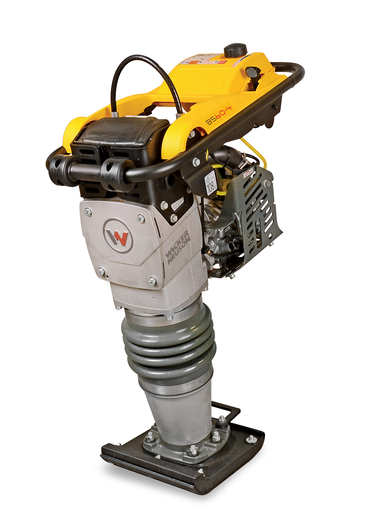

Four-stroke vibratory rammer with 280 mm ramming shoe for soil compaction, Honda GX engine
  • Long shoe stroke, high percussion rate and high impact energy with fast advance travel achieve high performance results
  • Low oil protection: Unit will not start if sensor detects no oil or low oil, protecting the engine
  • Simple operation with only one ever for acceleration and shutoff
  • Powered by Honda GX 100 engine and designed for the compaction of cohesive, mixed and granular soils in confined areas
  • Unique four-stage air filtration system provides longer life and improved durability
OPERATING FLUIDS Metric
Tank capacity 3,00 l
ENGINE Metric
Air cleaner dry air filter
Fuel management Carburettor
Engine operating mode four-stroke
Cooling air cooling
Exhaust-gas limit EPA Phase2 & EU2002/88/EC
Oil specification SAE 10W-30
Operating Engine speed 4.200 1/min
Fuel consumption 0,90 L/hr
Starter type Recoil starter
Oil filling min. 0,40 l
Operating power 2,4 KW
Engine type Gasoline engine
Cylinder 1
Engine Manufacturer Honda
Cylinder capacity 98 cm3
Tank capacity 3,0 l
Fuel Gasoline
Electrode distance 0,6 - 0,7 mm
Effective power 2,4 KW
Oil filling max. 0,40 l
MECHANICAL - OUTPUT DETAILS Metric
Number of blows 690 1/min
SHIPPING AND STORAGE Metric
Shipping weight 80,00 kg
ELECTRICAL SYSTEM Metric
Electrode distance 0,6 - 0,7 mm
ENVIRONMENT DATA Metric
Sound level LpA (Standard) EN 500-4
Sound power LWA, guaranteed 108,0 dB(A)
HAV summation (average value) 6,5 m/s2
HAV summation (Standard) EN ISO 5349-1
Sound level LpA 91,0 dB(A)
Sound power LWA (Standard) 2000/14/EG
Sound power LWA, measured 104,0 dB(A)
MECHANICAL DETAILS Metric
Length 673 mm
Length Ramming Shoe 336 mm
Height 965 mm
stroke at tamper 78 mm
Width Ramming Shoe 280 mm
Width 343 mm
Weight 72,00 kg
Custom Attributes Metric
Model serie BS60-4
