Wacker Neuson

BS50-4As (280mm)

BS50-4As (280mm)

5200018219
£1,818.48 GBP
£1,818.48 GBP
Sale On request
Shipping calculated at checkout.

5200018219

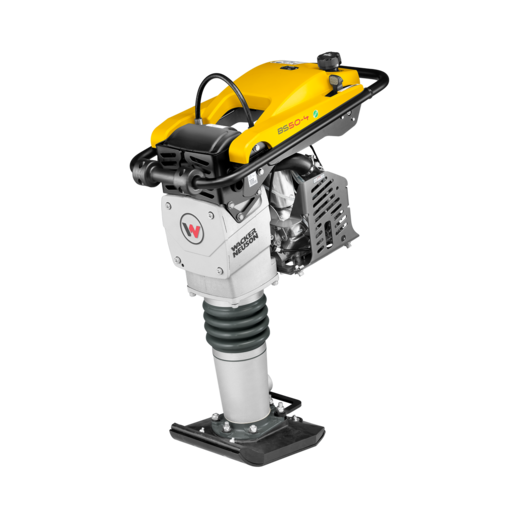

4 stroke vibratory rammer with 280 mm adapter for soil compaction, Honda GX engine
  • 4 stroke rammer with Honda GXR120 engine
  • Convenient operation with only one single lever for start, stop and idling
  • Large stroke, high percussion rate and high impact force with quick travel speed for a high level of performance
  • Specially designed and developed 4-stage air filter system provides for longer operating time and greater durability
  • With operating hours counter
  • Protection against low oil level: Unit does not start if the sensor detects a low oil level.
OPERATING FLUIDS Metric
Lubrication intervall 250 h
Oil volume 0,700 l
Oil specification SAE 10W-40
Tank capacity 2,90 l
ENGINE Metric
Air cleaner dry air filter
Fuel management Carburettor
Engine operating mode four-stroke
Cooling air cooling
Exhaust-gas limit EPA TIER II
Oil specification SAE 10W-40
Operating Engine speed 4.100 1/min
Fuel consumption 0,90 L/hr 0,75 kg/h
Idling speed 1.850 1/min
Operating power 2,7 KW
Engine type Gasoline engine
Cylinder 1
Standard (Power max.) SAE J1349
Engine Manufacturer Honda
Standard (Operating power) ISO 3046-1
Standard (Effective power) ISO 3046-1
Cylinder capacity 121 cm3
Nominal Engine speed 4.200 1/min
Fuel Gasoline
Spark plug(s) DENSO U16FSR-UB
Effective power 2,7 KW
Oil filling max. 0,30 l
Engine Designation GXR120
MECHANICAL - OUTPUT DETAILS Metric
Power of impact 16 kN
Forward Running 7,10 m/min
Number of blows 656 1/min
ELECTRICAL SYSTEM Metric
Display Equipment Operating hours counter
Electrode distance 0,6 - 0,7 mm
Operating elements Pushbutton OFF
MECHANICAL DETAILS Metric
Operating weight 65,0 kg
Length 673 mm
Length Ramming Shoe 340 mm
Height 940 mm
stroke at tamper 61 mm
Width Ramming Shoe 280 mm
Width 343 mm
Weight 65,00 kg
ENVIRONMENT DATA Metric
Operating temperature range -10 - 40 °C
Sound level LpA (Standard) EN 500-4
Sound power LWA, guaranteed 108,0 dB(A)
Storage temperature range -30 - 50 °C
HAV summation (average value) 11,0 m/s2
Uncertainty in measurement HAV 1,9 m/s2
HAV summation (Standard) EN ISO 5349-1
Sound level LpA 90,0 dB(A)
Sound power LWA (Standard) 2000/14/EG
Sound power LWA, measured 107,0 dB(A)
