BS50-2 (280mm)
BS50-2 (280mm)
5100030591
Regular price
£1,795.00 GBP
Regular price
Sale price
£1,795.00 GBP
Unit price
/
per
SKU:5100030591
Share

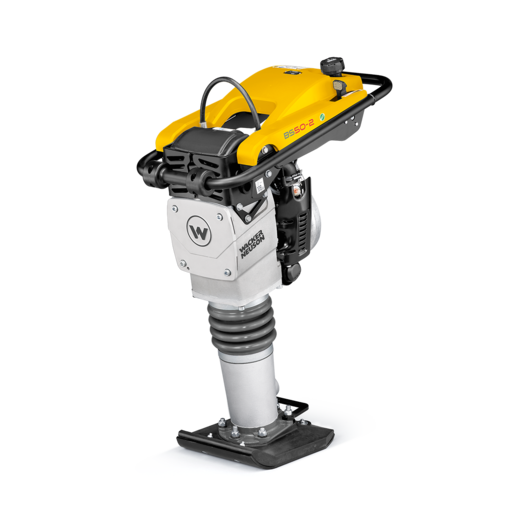

2 stroke rammer with 280 mm ramming shoe for soil compaction
- Driven by the exclusive WM80 2-cycle engine with catalytic converter, which was designed and developed by Wacker Neuson specifically for demanding ramming applications
- Effortless to start
- The lowest CO-emissions, significantly below all four-cycle engines
- Thanks to the automatic injection, always the optimal combustion and maximum performance
- Automatic shutdown of the engine after 10 minutes at idle in order to reduce fuel consumption and emissions
- Specially designed and developed 4-stage air filter system provides for longer operating time and greater durability
- With operating hours counter
- Compact dimensions, therefore very manoeuvrable and easy to handle
- Very good gradeability
- High performance, maximum jump height and impact force
OPERATING FLUIDS | Metric |
Lubrication intervall | 250 h |
Oil volume | 0,700 l |
Oil specification | SAE 10W-40 |
Tank capacity | 2,90 l |
ENGINE | Metric | |
Fuel management | Carburettor | |
Engine operating mode | two-stroke | |
Cooling | air cooling | |
Exhaust-gas limit | EPA TIER II | |
Oil specification | ISO-L-EGC | |
Operating Engine speed | 4.250 1/min | |
Fuel consumption | 0,90 L/hr | 0,73 kg/h |
Idling speed | 2.000 1/min | |
Starter type | Recoil starter | |
Operating power | 1,7 KW | |
Engine type | Gasoline engine | |
Cylinder | 1 | |
Engine Manufacturer | Wacker Neuson | |
Standard (Operating power) | ISO 3046-1 | |
Standard (Effective power) | ISO 3046-1 | |
Cylinder capacity | 80 cm3 | |
Nominal Engine speed | 4.400 1/min | |
Fuel | Alkylate fuel/Oil mixture | |
Spark plug(s) | Champion RL86C | |
Effective power | 1,8 KW | |
Fuel mix ratio | 1:100 | |
Engine Designation | WM80 |
MECHANICAL - OUTPUT DETAILS | Metric |
Power of impact | 16 kN |
Forward Running | 7,90 m/min |
Number of blows | 687 1/min |
ELECTRICAL SYSTEM | Metric |
Display Equipment | Operating hours counter |
Electrode distance | 0,5 - 0,8 mm |
Operating elements | Pushbutton OFF |
MECHANICAL DETAILS | Metric |
Operating weight | 56,0 kg |
Length | 673 mm |
Length Ramming Shoe | 340 mm |
Height | 940 mm |
stroke at tamper | 43 mm |
Width Ramming Shoe | 280 mm |
Width | 343 mm |
Weight | 56,00 kg |
ENVIRONMENT DATA | Metric |
Operating temperature range | -10 - 40 °C |
Sound level LpA (Standard) | EN 500-4 |
Sound power LWA, guaranteed | 108,0 dB(A) |
Storage temperature range | -30 - 50 °C |
HAV summation (average value) | 6,5 m/s2 |
Uncertainty in measurement HAV | 0,6 m/s2 |
HAV summation (Standard) | EN ISO 5349-1 |
Sound level LpA | 92,0 dB(A) |
Sound power LWA (Standard) | 2000/14/EG |
Sound power LWA, measured | 107,0 dB(A) |
Custom Attributes | Metric |
Model serie | BS50-2 |
