Wacker Neuson

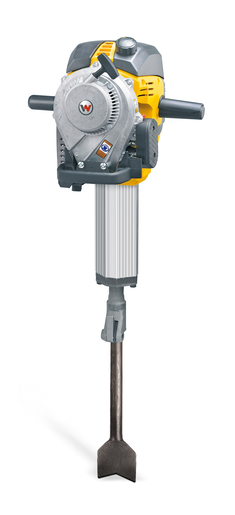

BH55rw

BH55rw

5100004042
£2,595.96 GBP
£2,595.96 GBP
Sale On request
Shipping calculated at checkout.

5100004042

Material number
5100004042
Tie tamping breaker: Compacts any coarse gravel, regardless of whether it is clean, dirty or icy material. Also ideal for driving through sleeper screws.
The BH 55railway is the specialist for work on the track: The frequency and impact force of this breaker is designed so that the coarse gravel is efficiently compacted without breaking. Through the selection of the corresponding plug-in tool (tool-free replacement), the BH 55railway can also be ideally used for the driving through of sleeper screws, for demolition work or for minor compaction work.
  • Easy start: The starting process is supported by a manual fuel pump (purge bulb)
  • Full hood spring mounting allows for steering close to the body
  • Low hand-arm vibrations (HAV) (below 5 m/s²)
  • Possible for one person to refuel lying down
  • Large tank with a large opening and undetachable cover
  • Open, self-cleaning percussion system
  • Long greasing interval (every 40 seconds) Lubrication via central zerk fitting with a small grease press
  • Environment-friendly, two-cycle engine with catalytic converter (WM 80): Falls well below all emission threshold values and is economical in use
You will also find a comprehensive offer of plug-in tools for various tool-holding fixtures here in the shop.
OPERATING FLUIDS Metric
Lubrication intervall 40 h
Oil specification 2-stroke oil -
Tank capacity 1,80 l
Fuel specification -
Lubricant Gadus S3 V220C 2
ENGINE Metric
Fuel management Carburettor
Engine operating mode two-stroke
Cooling air cooling
Oil specification ISO-L-EGC
Fuel consumption 0,90 L/hr
Idling speed 2.000 1/min
Starter type Recoil starter
Engine type Gasoline engine
Cylinder 1
Engine Manufacturer Wacker Neuson
Standard (Effective power) ISO 3046-1
Cylinder capacity 80 cm3
Nominal Engine speed 4.500 1/min
Tank capacity 1,8 l
Fuel Alkylate fuel/Oil mixture
Electrode distance 0,5 mm
Spark plug(s) Bosch WR7AC
Effective power 1,6 KW
Fuel mix ratio 1:100
MECHANICAL - OUTPUT DETAILS Metric
Transmission FKK-ESG-PSW
Singel beat energie 55 J
Number of blows 1.350 1/min
ELECTRICAL SYSTEM Metric
Electrode distance 0,5 mm
Breaker Switch On/Off Pushbutton OFF
ENVIRONMENT DATA Metric
Operating temperature range -10 - 40 °C
Sound level LpA (Standard) DIN EN ISO 11201
Sound power LWA, guaranteed 109,0 dB(A)
Vibration total value ahv 4,5 m/s2
Storage temperature range -30 - 50 °C
Uncertainty in measurement HAV 3,0 m/s2
Sound level LpA 101,0 dB(A)
Vibration value ahv (Standard) DIN EN ISO 28927
Sound power LWA (Standard) 2000/14/EG
Sound power LWA, measured 108,0 dB(A)
MECHANICAL DETAILS Metric
Depth without tool 346 mm
Width without tool 492 mm
Weight 25,90 kg
Length without tool 898 mm
Tool holder Hex 32x160
Custom Attributes Metric
Model serie BH55rw
