Wacker Neuson

BFS1345

BFS1345

5100009944
£1,837.68 GBP
£1,837.68 GBP
Sale On request
Shipping calculated at checkout.

5100009944

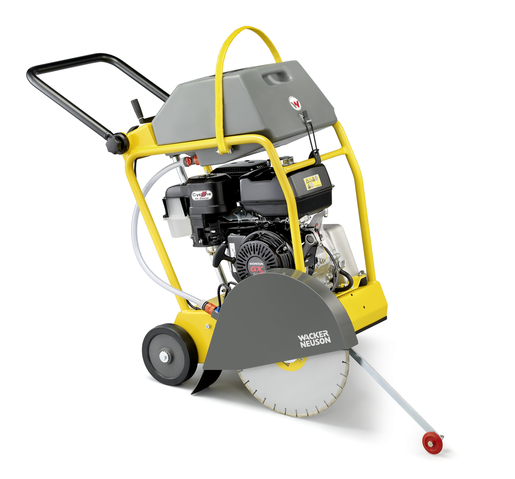

Floor saw for perfect cuts in asphalt and concrete. High cutting precision, optimal maneuverability.
  • High tensile strength, sturdy protective frame for a reliable straight-ahead travel
  • Petrol engine with (automatic) low oil shutoff
  • Infinitely adjustable cutting depth control through maintenance-free crank mechanism
  • Easily visible guide wheel
  • Lifetime lubrication, maintenance-free bearings
  • Height adjustable handle grip
  • Low hand-arm vibrations (HAV) (below 5 m/s²)
  • Ball-bearing wheels
  • Wide distance between rear wheels
  • Sturdy, large and wide rubber tires
  • Large-volume water tank with large filler opening, can be removed without tools
  • Water sprinklers on both sides of the cutting blade for optimal dust suppression and minimization of the blade wear
  • Tool-free hose connection with "Gardena" model rapid action coupling
You will also find a comprehensive offer of diamond blades here in the shop.
OPERATING FLUIDS Metric
Tank capacity 6,10 l
Water tank capacity 32,0 l
ENGINE Metric
Air cleaner Zyklonluftfilter
Inclined position max. 20,0 °
Fuel management Carburettor
Engine operating mode four-stroke
Cooling air cooling
Oil specification SAE 10W-30 API SE
Fuel consumption 3,50 L/hr
Starter type Recoil starter
Engine type Gasoline engine
Cylinder 1
Engine Manufacturer Honda
Standard (Effective power) SAE J1349
Cylinder capacity 389 cm3
Nominal Engine speed 3.600 1/min
Fuel Gasoline
Spark plug(s) Denso W20EPR-U
Effective power 8,7 KW
Oil filling max. 1,10 l
MECHANICAL - OUTPUT DETAILS Metric
Operating speed Cutting wheel 2.200 1/min
Circum. speed; Wheel 400 mm 46,1 m/s
Transmission KRR
Circum. speed; Wheel 350 mm 40,3 m/s
Cutting depth max. 17,0 cm
Span width max. 12,0 mm
Circum. speed; Wheel 450 mm 51,8 m/s
ELECTRICAL SYSTEM Metric
Electrode distance 0,7 - 0,8 mm
Breaker Switch On/Off yes
ENVIRONMENT DATA Metric
Operating temperature range -15 - 40 °C
Sound level LpA (Standard) DIN EN 13862
Sound power LWA, guaranteed 107,0 dB(A)
Vibration total value ahv 4,9 m/s2
Storage temperature range -30 - 50 °C
Uncertainty in measurement HAV 1,5 m/s2
Sound level LpA 89,0 dB(A)
Vibration value ahv (Standard) DIN EN 13862
Sound power LWA (Standard) DIN EN 13862
Sound power LWA, measured 105,0 dB(A)
MECHANICAL DETAILS Metric
Mounting hole of wheel 25,4 mm
Cutting wheel diameter max. 450 mm
Height on Trailer 1.010 mm
Cutting wheel diameter min. 350 mm
Width 575 mm
Length direction wheel raised 860 mm
Weight 93,00 kg
