Dynapac

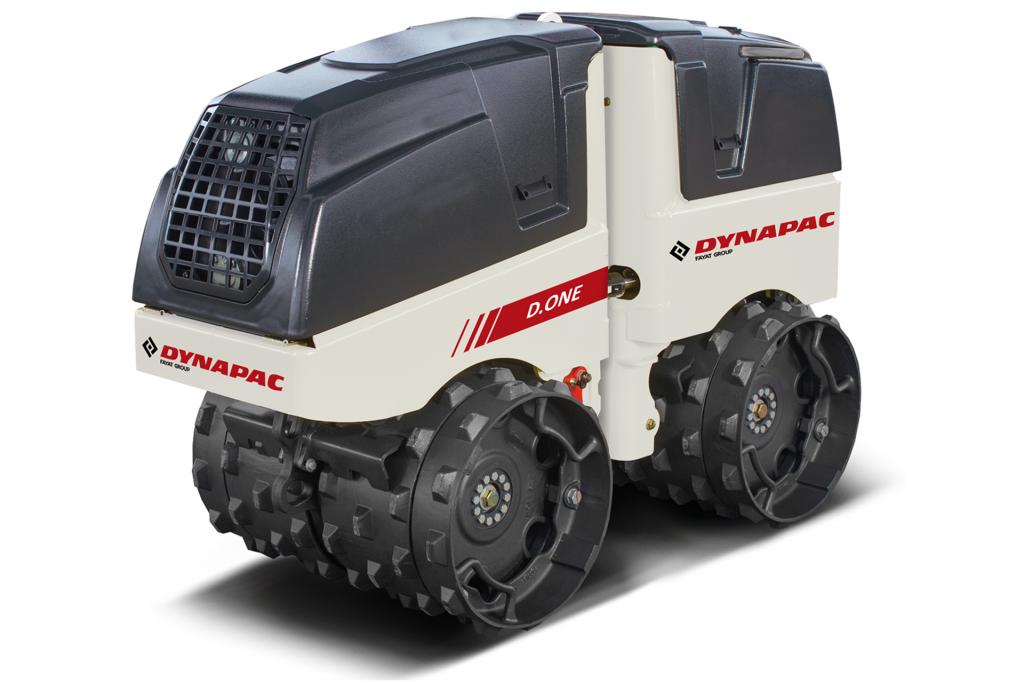

D1 Trench Roller

D1 Trench Roller

Regular price £22,654.85 GBP
Regular price Sale price £22,654.85 GBP
Sale On request
Shipping calculated at checkout.

SKU:

D.ONE is built with a remote control technology that maximizes the uptime and ensures hassle free operation. The radio remote control enables barrier free and long range connectivity. Thus, you can focus on the compaction job rather than struggling to stay connected even in deep trenches with shoring.

The radio controlled remote technology is not sensitive to weather conditions and can work trouble free in conditions with extreme sunlight.

All the machine functions including engine start-stop can be activated from the remote control eliminating the hassle of walking down the trench to re-start the equipment

Standard Equipment

■ Hydrostatic articulated steering
■ Radio/ cable remote control
■ Active Zone System
■ Drum extension (610/850 mm)
■ Dual directed-vibration system
■ Two travel speed ranges
■ Two amplitudes
■ Two scrapers per drum
■ Automatic vibration control
■ Ecomode
■ Horn
■ Automatic shutdown at low oil level
■ Automatic engine shut down at a lateral tipping angle of 45°
■ Electric starter
■ Heavy-duty protection hood
■ One point lift

Technical Data

Masses
Operating mass 1595 kg
Basic mass 1585 kg
Axle load, avg. 798 kg
Traction
Speed 1, forward / reverse 1.2 km/h
Speed 2, forward / reverse 2.8 km/h
Max. gradeability without vibr. 55 %
Max. gradeability with vibr. 45 %
Compaction
Centrifugal force (front/rear) 72/ 36 kN
Amplitude (front/rear) 1.12/ 0.56 mm
Frequency 42/ 42 Hz
Engine / Drive
Manufacturer/Model Kohler KDW 1003
Rated power, ISO 3046 12.80 kW @ 2600 rpm
Number of cylinders 3
Fuel tank capacity 24 l
Fuel consumption /h, avg. 3.2 l
Emissions according to Stage V, TIER4f
Type Water cooled, diesel
