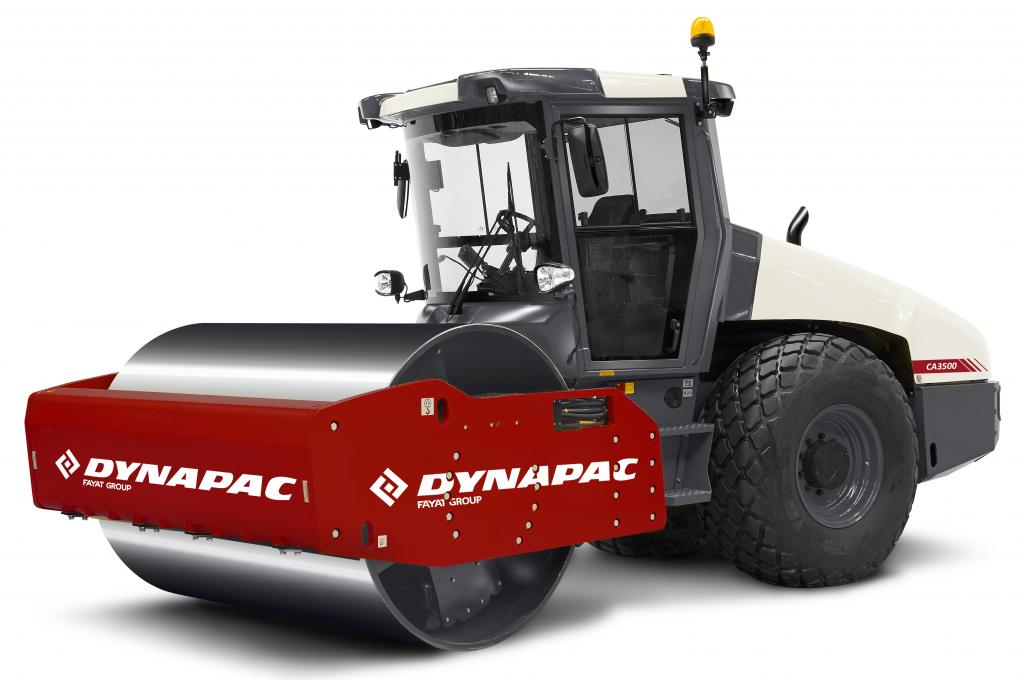

CA3500D (13T)

CA3500D (13T)

Regular price £0.00 GBP
Regular price Sale price £0.00 GBP
Sale On request
Shipping calculated at checkout.


Technical Data
Operating mass (incl. ROPS) 11900 kg
Operating mass (incl. Cab) 12100 kg
Module mass (front/rear) 7600 kg/ 4500 kg
Max. operating mass 13800 kg
Drum Width       2130mm


Speed range (Dual/TC/AS) 4/6/7/12 km/h
Vertical oscillation ±9°
Tyre size (8 ply) 23.1 x 26 AW
Max. theoretical gradeability 55 %
Centrifugal force 170/280 kN
Nominal amplitude 1.9/0.9 mm
Static linear load 36 kg/cm
Static linear load (front/rear) 9.3/ 10.4 kg/cm
Vibration frequency 31/34 Hz
Hydraulic system
Driving Hydrostatic
Vibration Hydrostatic
Steering Hydrostatic
Service brake Hydrostatic in forward and reverse lever.
Emergency brake
Failsafe multidisc brake in drum gear box and in rear axle.

Engine / Drive

Manufacturer/Model Cummins F3.8 (V)
Type Water cooled turbo Diesel
Rated power, SAE J1995

100 kW (135 hp) @ 2,200 rpm

View full details
