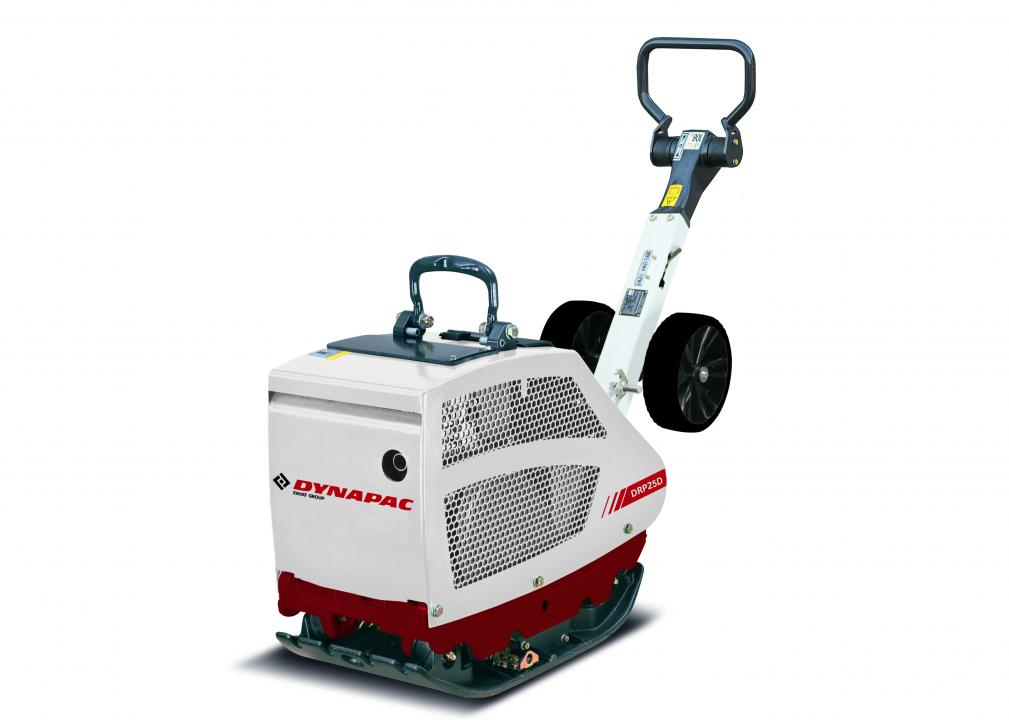

DRP25D

■ Control handle with vibration isolation
■ Height adjustable control lever
■ Control lever lock in transport and working position
■ Reverse drive protection
■ Highly wear resistant base plate
■ All around protection hood
■ All around protection for V-belt
■ Automatic decompression
■ One point lift
■ Recoil starter
■ Electric starter
■ Hour meter

■ Block paving mat
■ Puncture proof transport wheels (+5kg)
■ Service Kit

Masses
Basic mass	277 kg
Operating mass	280 kg
Operating mass (W2)	kg
Traction
Max. gradeability	32 %
Max. working speed	27 m/min
Compaction
Amplitude	1.4 mm
Centrifugal force	40 kN
Frequency	80 Hz
Basic plate width 600 mm Engine / Drive
Manufacturer/Model	Hatz 1B 20
Emissions according to	EU Stage V/ non US EPA
Rated power	kW
Type	Air cooled diesel
Number of cylinders	1
Fuel consumption /h, avg.	0.7 l
Fuel tank capacity	3.0 l
Power	3.1 kW @ 3000 rpm
