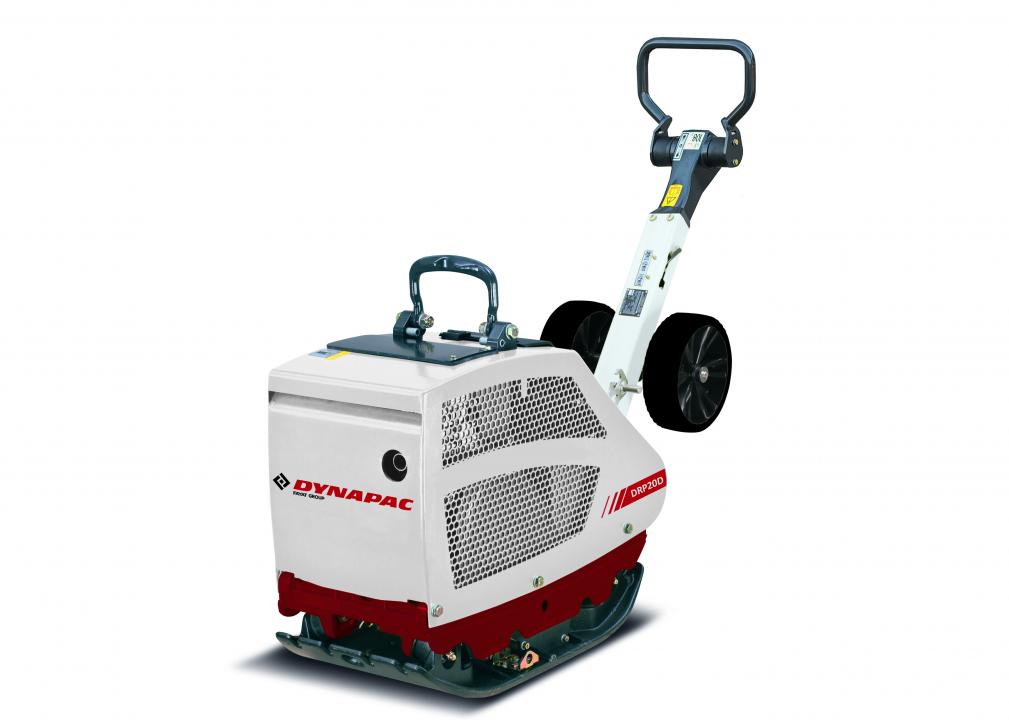

DRP20D

■ Control handle with vibration isolation
■ Height adjustable control handle
■ Control handle lock in transport and working position
■ Reverse drive protection
■ Highly wear resistant base plate
■ All around protection hood
■ All around protection for V-belt
■ One point lift
■ Automatic decompression
■ Recoil starter

■ Block paving mat
■ Puncture proof transport wheels (+5kg)
■ Service Kit

Masses
Basic mass	207 kg
Operating mass	210 kg
Operating mass (W2)	kg
Traction
Max. gradeability	32 %
Max. working speed	27 m/min
Compaction
Amplitude	1.3 mm
Centrifugal force	35 kN
Frequency	80 Hz
Basic plate width 420 mm Engine / Drive
Manufacturer/Model	Hatz 1B20
Emissions according to	EU Stage V / non US EPA
Rated power	kW
Type	Air cooled, diesel
Number of cylinders	1
Fuel consumption /h, avg.	0.7 l
Fuel tank capacity	3 l
Power	3.1 kW @ 3000 rpm
