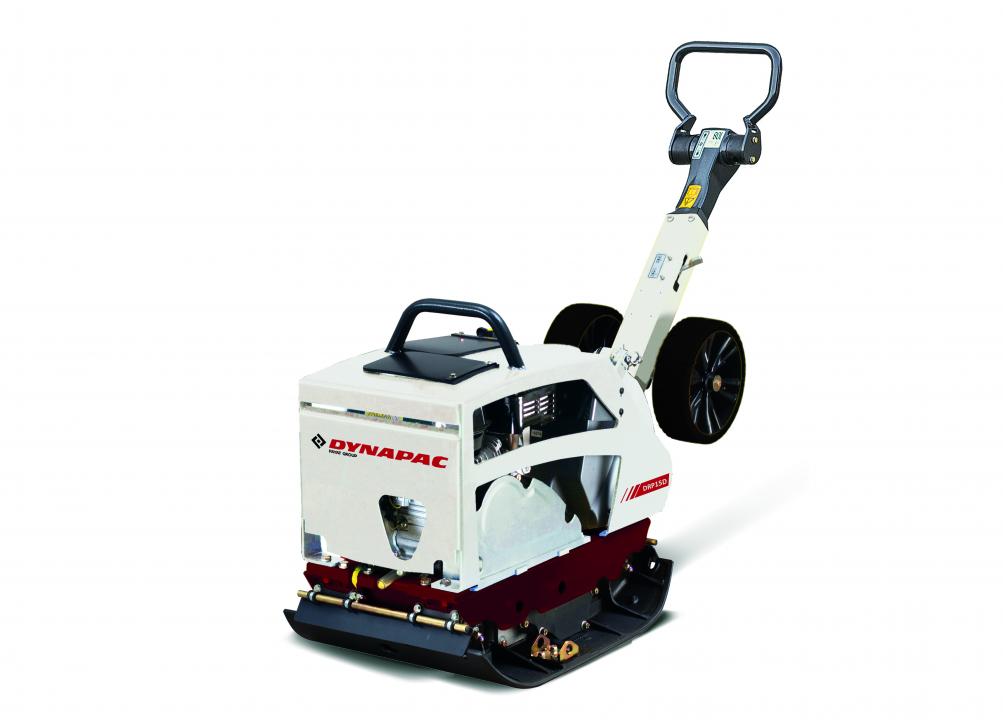

DRP15D

■ Control handle with vibration isolation
■ Height adjustable control lever
■ Control lever lock in transport and working position
■ Reverse drive protection
■ Highly wear resistant base plate
■ All around protection hood
■ All around protection for V-belt
■ One point lift
■ Automatic decompression
■ Recoil starter

■ Block paving mat
■ Puncture proof transport wheels (+4kg)
■ Water sprinkler system 12l (+13kg)

Masses
Basic mass	147 kg
Operating mass	150 kg
Operating mass (W2)	kg
Traction
Max. gradeability	30 %
Max. working speed	25 m/min
Compaction
Amplitude	1.55 mm
Centrifugal force	25 kN
Frequency	85 Hz
Water tank	l
Water tank volume	12 l
Basic plate width 400 mm Engine / Drive
Manufacturer/Model	Hatz 1B20
Emissions according to	EU Stage V / non US EPA
Rated power	kW
Number of cylinders	1
Fuel consumption /h, avg.	0.7 l
Fuel tank capacity	3 l
Power	3.1 kW @ 3000 rpm
