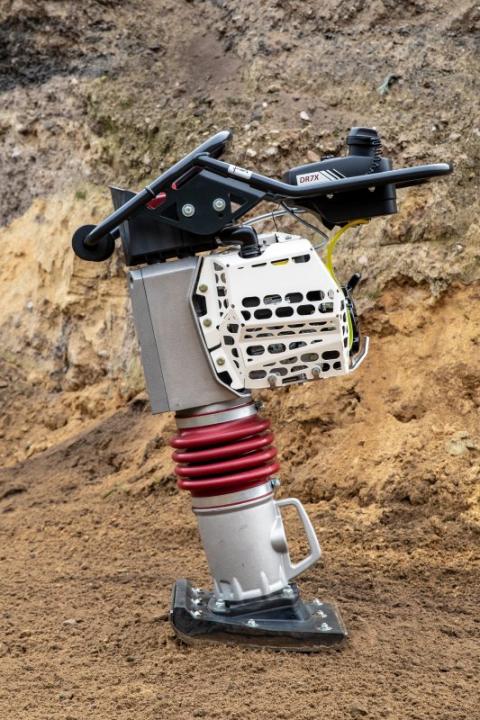

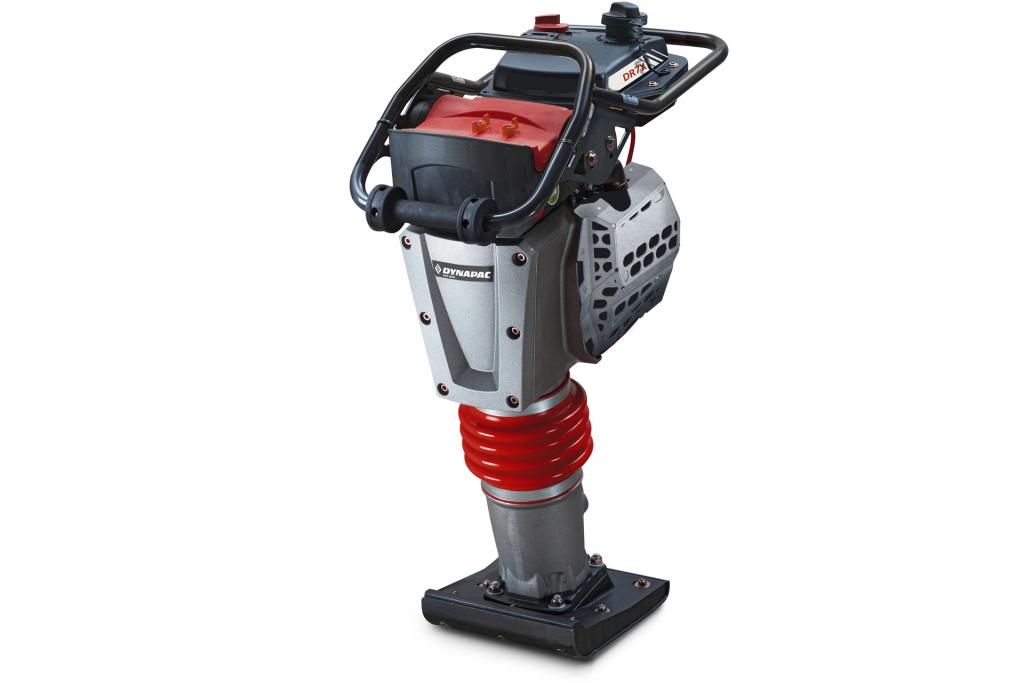

DR7X (280mm)

■ Low vibration handle
■ Dual stage fuel filter system
■ Air filter
■ Air pre-filter with self cleaning housing
■ Auto oil level check before start
■ Engine protection covers
■ One knob to start or stop both engine & fuel
■ Infinitely variable frequency
■ Recoil starter
■ Loading aid rollers on handle
■ One point lift
■ Hour and rpm display

■ Puncture proof transport wheels
■ Foot widths & extensions
■ Service kit

Masses
Net mass	67 kg
Operating mass	68 kg
Traction
Max. area coverage	336 m2 /h
Max. working speed	20 m/min
Compaction
Impact force, kN	17 kN
Vibration frequency	10.0 – 11.8 Hz
Basic shoe width 280 mm Engine / Drive
Manufacturer/Model	Honda GXR 120
Number of cylinders	1
Type	Air cooled gasoline
Emissions according to	Stage V / CARB Phase lll
Rated power	2.8 kW
Fuel tank capacity	3 l
Fuel consumption /h, avg.	0.9 l
