Wacker Neuson

DPU3050He

DPU3050He

5000610298
Regular price £4,767.36 GBP
Regular price Sale price £4,767.36 GBP
Sale On request
Shipping calculated at checkout.

SKU:5000610298

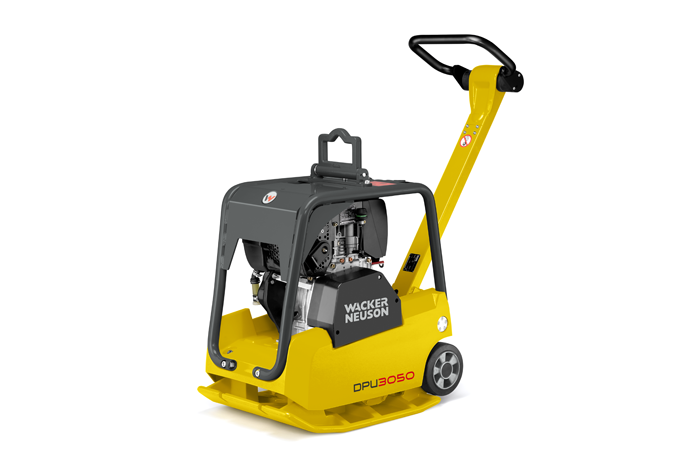

The compact vibratory plate with an excellent weight to performance ratio.
  • Uniquely mobile: The integrated, very sturdy transport gear allows for easy transport on the construction site.
  • Intuitive control handle: Control of the movement of direction as well as the speed in the same movement sequence - without changing grips, both hands stay on the control unit
  • Height adjustable center pole
  • Safety setting: Machine moves away from the operator if the control handle is released
  • Large-sized engine for a long service life
  • Water trap with inspection glass
  • The engine and tank are protected by a sturdy frame, which is also useful for a sturdy tie-down during transport.
  • All maintenance points are easily accessible, easily visible air cleaner capacity display
  • Thick, wear resistant base plate made from nodular cast iron
  • Very sturdy, free from play center pole lock, easy to actuate for a secure transport
  • Sturdy, fold-down lifting eye
  • Quick and easy assembly of a paving pad possible
You will also find an appropriate paving pad here in the shop for the protection of paving stone bottoms.
OPERATING FLUIDS Metric
Tank capacity 5,00 l
Hydraulic fluid type Renolin MR 520
Exciter oil volume 0,60 l
Hydraulic fluid volume 0,4 l
Exciter oil type 75W-90 API GL-4
ENGINE Metric
Inclined position max. 25,0 °
Engine operating mode four-stroke
Fuel consumption 0,60 L/hr
Standard (Power max.) ISO 3046 IFN
Nominal Engine speed 2.800 1/min
Tank capacity 5,0 l
Electrode distance 0 0 0
Effective power 4,2 KW
Oil filling max. 1,10 l
Battery capacity (nom. value) 0 Ah
Air cleaner dry air filter
Power rating max. 5,4 KW
Cooling air cooling
Exhaust-gas limit EU Stage V
Oil specification SAE 10W-40
Starter battery Voltage 0 V
Engine speed (Power max.) 3.600 1/min
Starter type Recoil starter
Oil filling min. 0,60 l
Engine type Diesel engine
Cylinder 1
Engine Manufacturer Hatz
Cylinder capacity 347 cm3
Fuel Diesel EN 590
Oil volume incl. filter change 1,10 l
MECHANICAL - OUTPUT DETAILS Metric
Vibrations 5.400 1/min
Gradeability 46,6 %
Transmission FKK
Centrifugal force 30,000 kN
Vibrations (Hz) 90 Hz
Area capacity 570 m2/h
Forward Running 19,00 m/min
HYDRAULIC Metric
Operating pressure hydraulics 0,0 bar
max. perm. hydraulic pressure 0,0 bar
ELECTRICAL SYSTEM Metric
Remote Control Bat. Capacity 0 h
Coding options 0
Recommended Battery Typ 0
Charging Time 0,00 h
Remote Control Range 0 m
MECHANICAL DETAILS Metric
Operating weight 181,0 kg
Ground clearance 777 - 887 mm
Height 1.101 mm
Width 500 mm
Length Drawbar in op. pos. 1.295 mm
ENVIRONMENT DATA Metric
Operating temperature range -7 - 45 °C
Sound level LpA (Standard) EN 500-4
Sound power LWA, guaranteed 108,0 dB(A)
Storage temperature range -7 - 45 °C
HAV summation (average value) 3,6 m/s2
Uncertainty in measurement HAV 0,5 m/s2
HAV summation (Standard) EN 500-4
Sound level LpA 86,0 dB(A)
Sound power LWA (Standard) EN 500-4
Sound power LWA, measured 107,0 dB(A)
Custom Attributes Metric
Model serie DPU
