Dynapac

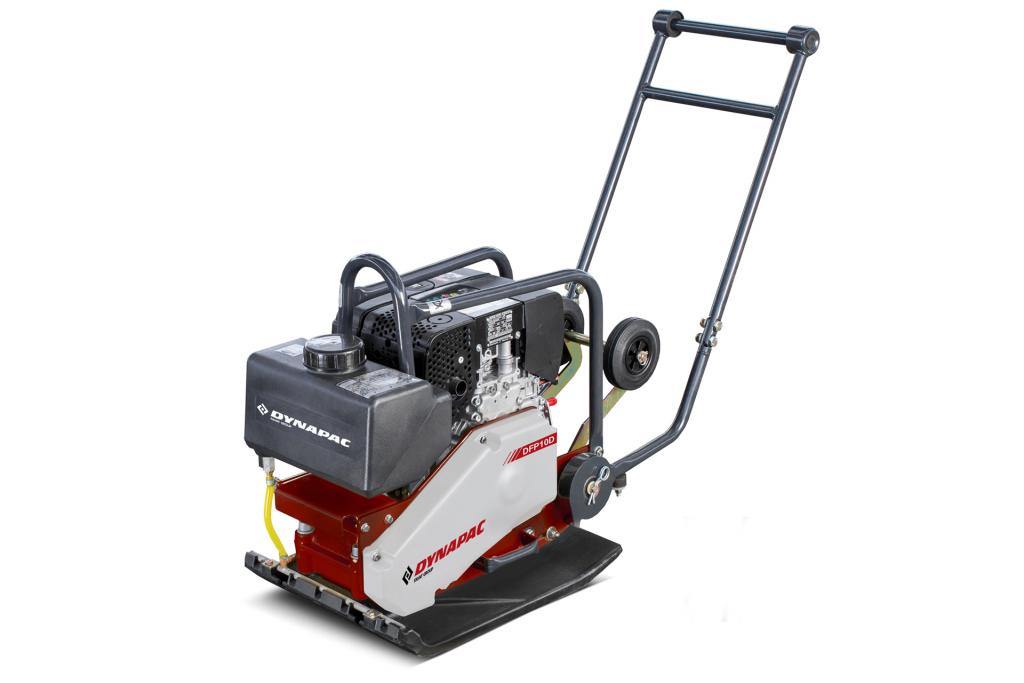

DFP10D
DFP10D
Regular price
£2,077.00 GBP
Regular price
Sale price
£2,077.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:
Built for easy use The DFP series can be equipped with low vibration comfort handles with hand arm vibration (HAV) values that permit long working hours without documentation. Special center mount handle is available in addition to the standard rear mount handle.
Standard
■ Foldable steering handle with vibration isolation
■ Highly wear resistant base plate
■ Automatic decompression
■ All around protection for V-belt
■ Protection frame for Engine
■ Recoil starter
■ Carrying handles
■ One point lift
■ Highly wear resistant base plate
■ Automatic decompression
■ All around protection for V-belt
■ Protection frame for Engine
■ Recoil starter
■ Carrying handles
■ One point lift
Optional
■ Water sprinkler system 7l (+7kg)
■ Comfort handle
■ Puncture proof transport wheels (+4kg)
■ Block paving mat
■ Comfort handle
■ Puncture proof transport wheels (+4kg)
■ Block paving mat
.
Technical Description
| Masses | |||
| Basic mass | 103 kg | ||
|---|---|---|---|
| Operating mass | 104 kg | ||
| Traction | |||
| Max. gradeability | 30 % | ||
| Max. working speed | 25 m/min | ||
| Compaction | |||
| Frequency | 90 Hz | ||
| Centrifugal force | 18 kN | ||
| Amplitude | 1.63 mm | ||
| Water tank volume | 7 l | ||
Engine / Drive |
|||
| Manufacturer/Model | Hatz 1B20 | ||
| Emissions according to | Stage V | ||
| Type | Air cooled, diesel | ||
| Number of cylinders | 1 | ||
| Fuel consumption /h, avg. | 0.7 l | ||
| Fuel tank capacity | 3 l | ||
| Power | 3.1 kW @ 3000 rpm | ||
