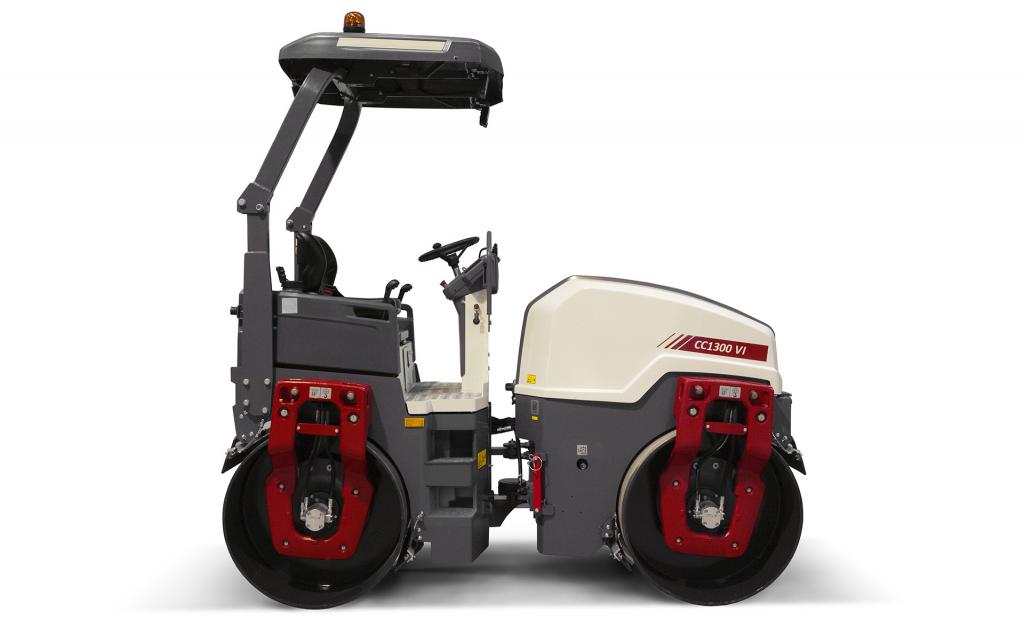

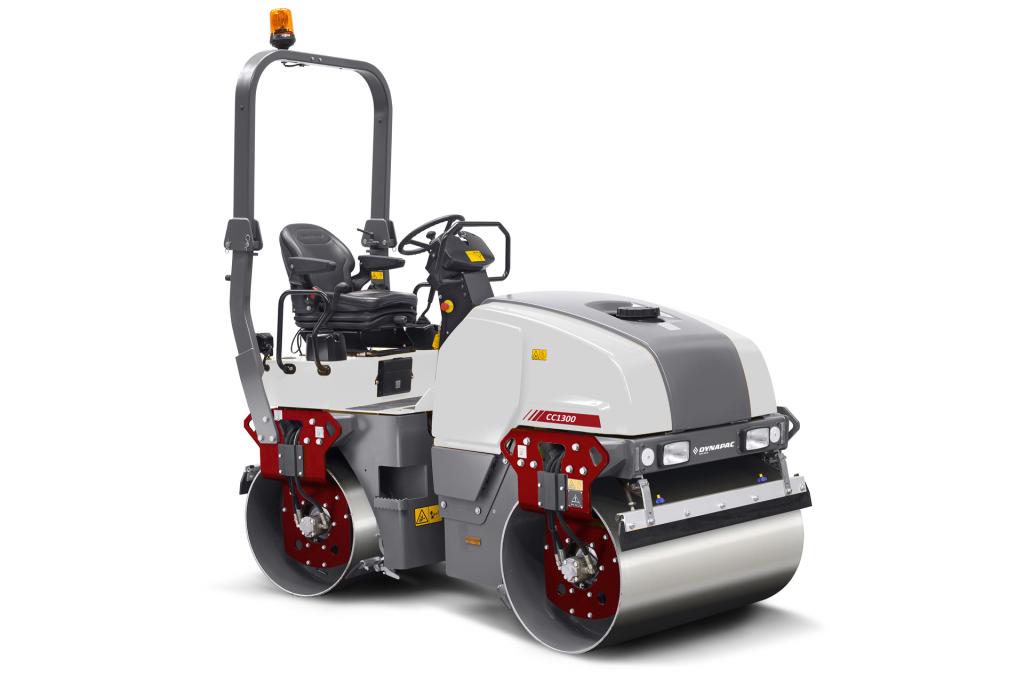

CC1300 (130cm)

CC1300 (130cm)

Regular price £35,295.00 GBP
Regular price Sale price £35,295.00 GBP
Sale On request
Shipping calculated at checkout.


Max. operating mass 4030 kg
Operating mass (incl. ROPS) 3900 kg
Module mass (front/rear) 1900 kg/ 2000 kg
Speed range 0-10 km/h
Vertical oscillation ±10°
Max. theoretical gradeability 37 %
Centrifugal force 36 kN
Nominal amplitude 0.5 mm
Static linear load (front/rear) 14.6/15.4 kg/cm
Vibration Frequency  Hz
Water tank volume 200 l
Engine / Drive
Model Kubota D1803-CR-TE5B(StageV)
Type Water cooled diesel engine
Rated power, SAE J1995 37 kW (49 hp ) @ 2700 rpm
Hydraulic system
Driving Axial piston pump with variable displacement.
Radial piston motors (2) with constant displacement.
Vibration Gear pump/motors with constant displacement.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Emergency brake
Failsafe multidisc brake in both drums.
Compaction - Oscillation
Oscillation frequency Hz
